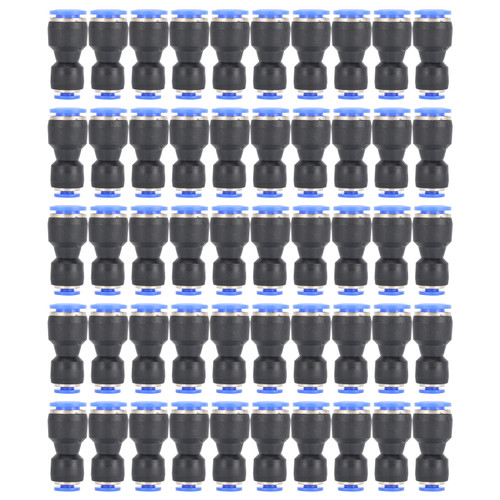

Product Overview
Model: SPG14 10
Material: Rubber, Plastic
Length: Approx. 45mm / 1.8in
Inner Diameter of Connection Port: 4/7in, 2/5in
Maximum Pressure Resistance: 1.32Mpa(13.5kgf/cm²)
Operating Pressure Range: 0-0.9Mpa(0-9.2kgf/cm²)
Operating Temperature Range: 0-60°C
Use of Hose: PU hose or nylon hose
Use: Widely used in machinery, electronics, automotive, packaging and other industries automated production equipment
Features
1、Push in Design: The straight push connector features a simple push in design for connection to tubing and provides a strong connection.
2、Flexible and Space Saving: Straight push in pneumatic connectors do not require additional sealing and are easy to install, flexible and space saving.
3、Connector Inner Diameter: Straight push pneumatic connectors feature a small and large end appearance with 4/7in and 2/5in inner diameters and a service temperature range of 0‑60°C.
4、360° Rotation: The straight push pneumatic connector adopts 360° rotation, and the release ring adopts oval design, which is easy to disassemble.
5、Suitable Scenario: Straight push connectors are widely used in machinery, electronics, automotive, packaging and other industries for automated production equipment.
Package List
4 x Straight Push Connectors
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.95 Inch |
| Length | 2.34 Inch |
