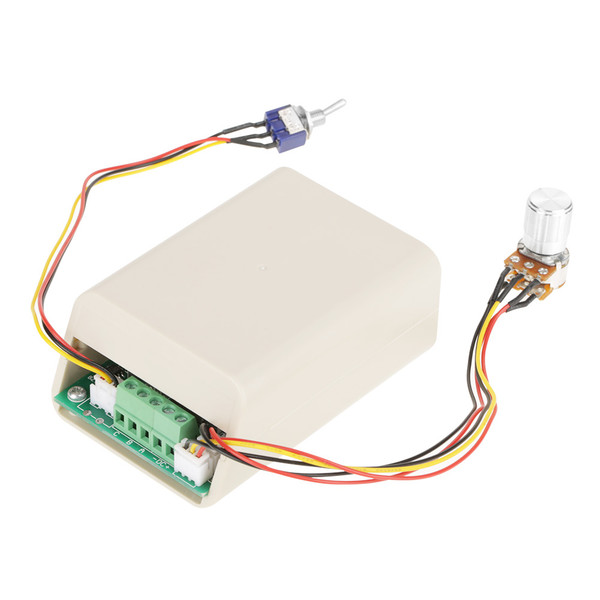

Product Overview
Features:
Specifications:
Input voltage: DC5-36V
Forward reversal: within 15A
Input current: > motor working current
Speed control: potentiometer (270 degree linear)
Speed regulation range: 0-100%
Support motor: brushless motor
Type of connection: barrier terminal
Knob specification: 100K (with switch)
Module size: 10*6.8*4cm / 3.93*2.67*1.57in
Weight: 141g
Package included:
1 x Motor Speed Controller
Note:
1. The input voltage must differentiate "+" ,"-", can't input 220V voltage
2. The input voltage should be equal to the rated voltage of the motor within 5-36V
3. The motor wire ABC don't differentiate sequence
Specifications:
Input voltage: DC5-36V
Forward reversal: within 15A
Input current: > motor working current
Speed control: potentiometer (270 degree linear)
Speed regulation range: 0-100%
Support motor: brushless motor
Type of connection: barrier terminal
Knob specification: 100K (with switch)
Module size: 10*6.8*4cm / 3.93*2.67*1.57in
Weight: 141g
Package included:
1 x Motor Speed Controller
Note:
1. The input voltage must differentiate "+" ,"-", can't input 220V voltage
2. The input voltage should be equal to the rated voltage of the motor within 5-36V
3. The motor wire ABC don't differentiate sequence
Features
1、100% brand new and high quality
2、This Motor Speed Controller is mainly used for DC Motor speed regulation
3、This sensor-less three-phase brush-less (BLDC) DC motor speed using high quality chips for wide voltage.
4、Stable performance, simple and most cost-effective multi-function operation, ease of use , is a compact DC brush-less DC drives.
5、This motor Speed Controller support DC motor CW and CCW rotation
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 2.34 Inch |
| Length | 5.46 Inch |
