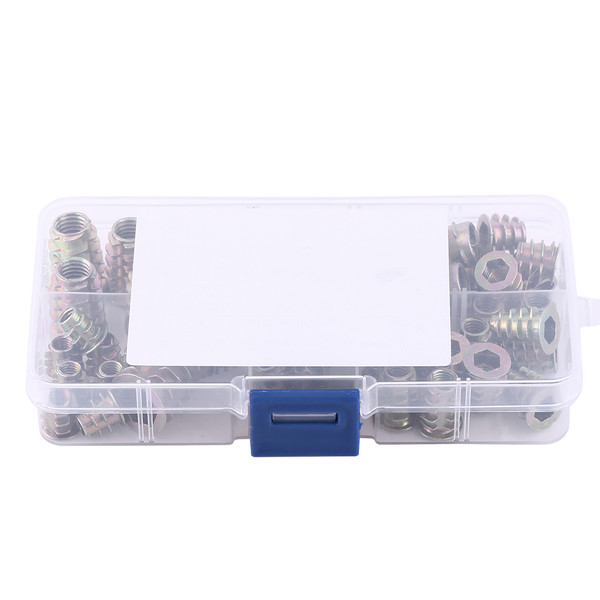

50pcs M4/M5/M6/M8/M10 Zinc Alloy Screw in Type Hex Drive Threaded Insert Nuts Assortment

Description:
An insert nut provides a threaded socket for a wooden workpiece, similar to a wall anchor. These insert nuts are inserted into a pre-drilled hole by screw in, in that case the external protrusions bite into the wood, preventing the nut from either turning or pulling out.
Features:
Specifications:
Material: Zinc alloy
Type: Hex socket screw-in
Size and Quantity:
M4*10mm         10pcs
M5*10mm         10pcs
M6*10mm         10pcs
M6*15mm         10pcs
M8*20mm           5pcs
M10*25mm         5pcs
Inner Diameter
Head Outer Diameter
Teeth Average Size
Bottom Outer Diameter
M4
8±0.2
7.1±0.2
4.7±0.2
M5
9.3±0.2
8.7±0.2
5.7±0.2
M6
11.4±
10.7±0.2
6.8±0.2
M8
12.4±0.2
11.7±0.2
8.9±0.2
M10
16±0.2
14.9±0.2
10.7±0.2
Package Includes:
50pcs x Insert Nuts

Features

1、These insert nuts are made from high quantity zinc alloy and comes in a resealable transparent plastic box
2、Screw-in insert nuts have an external thread and hex socket drive and are screwed in with a hex key wrench
3、Insert nuts are advantageous over barrel nuts and T-nuts, because they can be installed from one side of the workpiece
4、This set of screw-in insert nuts come in different sizes and take different screw sizes
5、The pre-drilled hole must be as deep as the length of the insert nut plus any portion of the bolt that may be screwed past the end of the nut in the work piece
