Product Overview

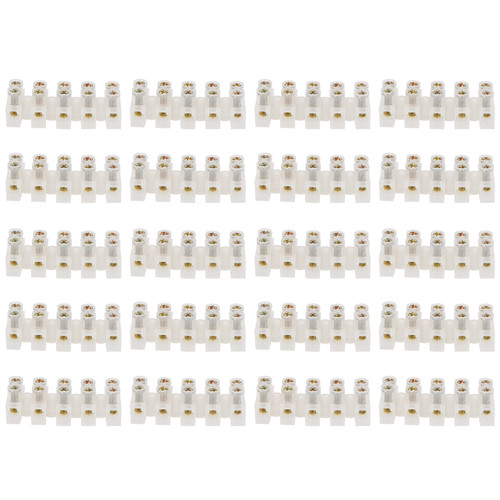

Item Type: Terminal Block
Material: PA + Brass
Withstand Current: 20A
Withstand Voltage: 380V
Wiring Range: Approx. 1~2.5mm²
Stripping Length: Approx. 10mm / 0.4in
Working Temperature: -25℃ to +105℃
Application: Large warehouses, hotel housing, household electricity, factory electricity
How to Use:
Step 1: Prepare the butt terminal, and peel off the protective layer of the part where the wire needs to be connected.
Step 2: Unscrew the screw of the terminal block and prepare the stripped wire
Step 3: Insert one end of the stripped wire into the terminal, and then tighten the screw
Material: PA + Brass
Withstand Current: 20A
Withstand Voltage: 380V
Wiring Range: Approx. 1~2.5mm²
Stripping Length: Approx. 10mm / 0.4in
Working Temperature: -25℃ to +105℃
Application: Large warehouses, hotel housing, household electricity, factory electricity
How to Use:
Step 1: Prepare the butt terminal, and peel off the protective layer of the part where the wire needs to be connected.
Step 2: Unscrew the screw of the terminal block and prepare the stripped wire
Step 3: Insert one end of the stripped wire into the terminal, and then tighten the screw
Features
1、Adopt thick brass guide strip, good electrical conductivity and high current‑carrying rate.
2、PA material insulation shell, good flame retardant performance, not easy to age and can be used safely.
3、Multi-group matching, convenient wiring, high practicability and safety and reliability.
4、Mainly used in lamps, electromechanical, machinery, electrical control, wires, power supplies, etc.
5、The number of wiring terminal kits is sufficient, the wiring range is wide, and it can be replaced at any time.
Package List
50 x Terminal Block
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 5.46 Inch |
| Height | 1.17 Inch |
| Length | 5.85 Inch |
