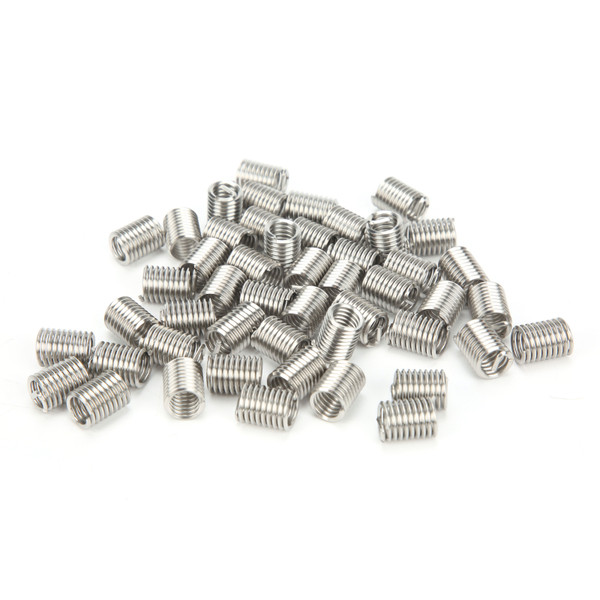

50Pcs Wire Thread Insert Screw Hole Repair Bushing Protection Socket US Units 5/16in‑18x2D

Item Type: Wire Thread Insert
Material: SUS304
Model: US Units 5/16in-18x2D
Diameter: Approx. 7.938mm / 0.3in
Pitch: Approx. 1.41mm / 0.06in
Number of Turns Before Installation: 9.4
Length After Installation: Approx. 15.9mm / 0.6in
Outside Diameter Before Installation: Approx. 9.6-10.2mm / 0.38-0.4in
Drill Bit Diameter: Approx. 8.3 mm / 0.3in
Thread Protective Socket Model Specification Description: For Example: M3 x 0.5 x 1.5D means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5 x 3=4.5mm) , the length here refers to the length after installation.
How to Use:
Step 1: Prepare the butt terminal, and peel off the protective layer of the part where the wire needs to be connected.
Step 2: Unscrew the screw of the terminal block and prepare the stripped wire.
Step 3: Insert one end of the stripped wire into the terminal, and then tighten the screw.

Features

1、Wire thread insert is a new type of internal threaded fastener, which can enhance the strength of the thread.
2、Made of high‑strength diamond‑shaped cross‑section stainless steel wire, which is not easy to deform.
3、Fit the wire thread insert in the screw hole of the low-strength metal to form a wear‑resistant and high‑accuracy standard female thread.
4、This repair socket is a cost‑effective repair tool when threading errors or repairing damaged female thread holes.
5、The wire thread insert can be used to switch between metric and inch threaded holes, which is convenient and quick.

Package List

50 x Wire Thread Insert
