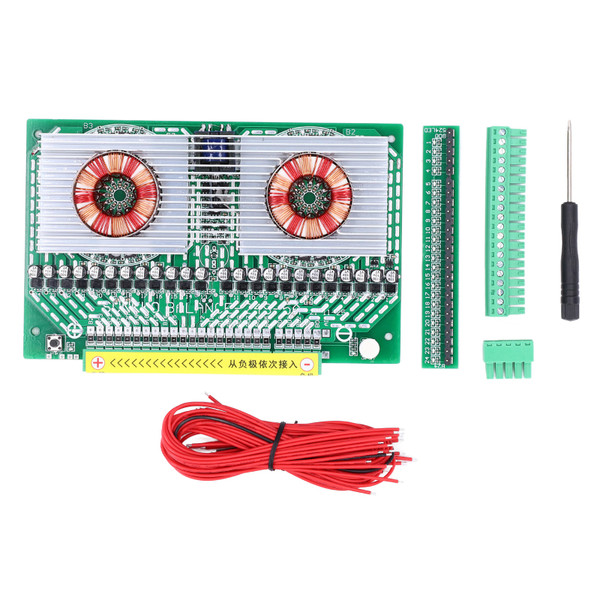

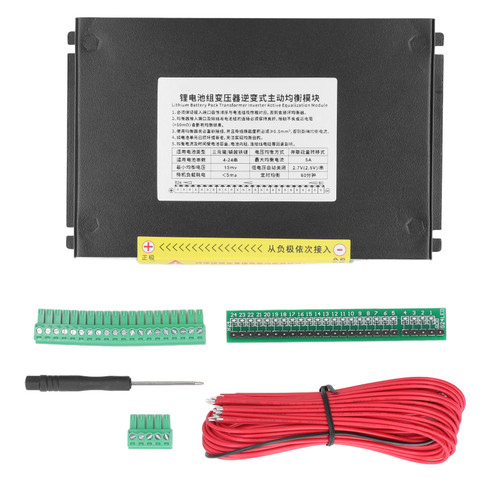

5A 4‑24S Lithium Battery Balance Board Battery Pack Voltage Active Equalization Module

Item Type: Lithium Battery Balance Board
Material: PCB
Applicable Battery Type: For ternary lithium, lithium iron phosphate battery
Applicable Battery Strings: 4-24S
Minimum Balance Voltage: 30mV
Maximum Equalizing Current: 5A
Forced Equilibrium Timing: 60 minutes
Cable Interface: 3.81 interface
Low Voltage Automatic Shutdown: 2.7V (2.5V)/string
Balance Method: Parallel energy transfer method
Standby Load Power Consumption: <5mA 12V (4th string power supply)
Battery Balance Power Consumption After Startup: 80mA (voltage difference=10mV)
Automatic Start Trigger Voltage: +70mV
Automatic Start Off Voltage: +20mV

Features

1、SAFE OPERATION: Amorphous isolated fully symmetrical transformer to ensure the minimum voltage difference, with overcurrent fuse resistors at the input terminals of each string to ensure safety.
2、DURABLE MOS DEVICE: Ultra low internal resistance MOS device constitutes an ultra low dynamic impedance inverter circuit to achieve high power equilibrium work.
3、GOOD BALANCE EFFECT: Adopt intelligent MCU chip main control management, can realize automatic self balancing work, and inverter heat dissipation under the extreme balance state of high voltage difference.
4、BATTERY PROTECTION: Automatically detect the lowest voltage of the battery, stop working when the battery is low in energy, and protect the battery from power loss.
5、DUAL TRIGGER MODES: The equalization board has dual modes of automatic and manual triggering, and the manual forced equalization timing off function is convenient to use.

Package List

1 x Active Balance Board

1 x Pin Header

1 x Long Interface Header

1 x Short Interface Header

1 Bundle Wire

1 x Screwdriver
