Product Overview
The 5MP USB 2.0 Drive Free digital Camera is
a high-resolution digital camera product composed of a high-speed USB 2.0
interface and a large area array CMOS image sensor. It can be widely used in
pattern recognition, industrial inspection, microscopic images, traffic
management, machine vision, image acquisition and other fields.
Features:
1. High-speed USB2.0 interface, data transmission speed reaches up to
480Mb/s.
2. Large area array CMOS progressive scan image sensor.
3. 0.5X CCD eyepiece adapter, specially designed for microscope photo
taking and video recording.
4. Support static and dynamic image capture.
5. Can be controlled to capture the any position of the image.
6. 8bit uncompressed raw image data, software achieves Bayer color
conversion plug and play installation.
7. Support for Windows 2000, XP, WIN7 operating system.
Specification:
Image sensor: 1/2.5" color CMOS image sensor
Pixel: 5MP
Pixel size: 2.2μm x 2.2μm
Spectral response 400nm ~ 1000nm
Scanning method: progressive scanning
Resolution: 640x480, 1280x1024, 1600x1200, 2048x1536, 2592x1944
Transmission rate: 30fps@640X480; 15fps@ 1280X1024; 5fps@ 2592x1944
White balance: automatic / manual
Automatic exposure control: automatic / manual
Image output: USB2.0, 480Mb / s
Working temperature: 0 ~ 50℃
Camera Size: 5 x 5.5 x 4.5cm / 1.97 x 2.16 x 1.77in
Weight: Approx. 361g/12.7oz

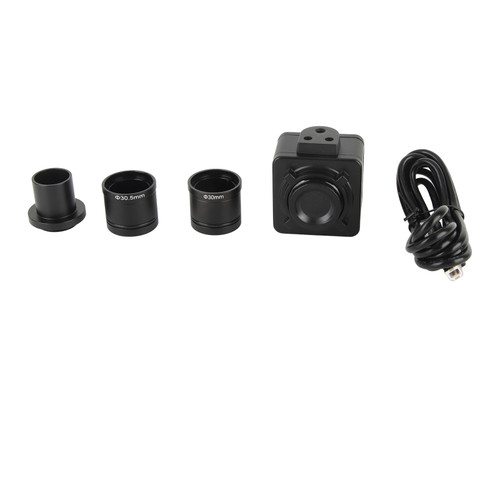

Package list:
1 x Camera
1 x USB Cable
1 x CD
1 x CCD Eyepiece Adapter
1 x 23.2mm to 30mm Ring Adapter
1 x 23.2mm to 30.5mm Ring Adapter
Note:
1. The color of USB cable is blue or black. We will randomly delivery.
2. Due to the difference between monitors
and light effects, the pictures may not reflect the actual color of the item.
3. Please allow slight error due to manual
measurement. Thanks for your understanding.
4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
a high-resolution digital camera product composed of a high-speed USB 2.0
interface and a large area array CMOS image sensor. It can be widely used in
pattern recognition, industrial inspection, microscopic images, traffic
management, machine vision, image acquisition and other fields.
Features:
1. High-speed USB2.0 interface, data transmission speed reaches up to
480Mb/s.
2. Large area array CMOS progressive scan image sensor.
3. 0.5X CCD eyepiece adapter, specially designed for microscope photo
taking and video recording.
4. Support static and dynamic image capture.
5. Can be controlled to capture the any position of the image.
6. 8bit uncompressed raw image data, software achieves Bayer color
conversion plug and play installation.
7. Support for Windows 2000, XP, WIN7 operating system.
Specification:
Image sensor: 1/2.5" color CMOS image sensor
Pixel: 5MP
Pixel size: 2.2μm x 2.2μm
Spectral response 400nm ~ 1000nm
Scanning method: progressive scanning
Resolution: 640x480, 1280x1024, 1600x1200, 2048x1536, 2592x1944
Transmission rate: 30fps@640X480; 15fps@ 1280X1024; 5fps@ 2592x1944
White balance: automatic / manual
Automatic exposure control: automatic / manual
Image output: USB2.0, 480Mb / s
Working temperature: 0 ~ 50℃
Camera Size: 5 x 5.5 x 4.5cm / 1.97 x 2.16 x 1.77in
Weight: Approx. 361g/12.7oz
Package list:
1 x Camera
1 x USB Cable
1 x CD
1 x CCD Eyepiece Adapter
1 x 23.2mm to 30mm Ring Adapter
1 x 23.2mm to 30.5mm Ring Adapter
Note:
1. The color of USB cable is blue or black. We will randomly delivery.
2. Due to the difference between monitors
and light effects, the pictures may not reflect the actual color of the item.
3. Please allow slight error due to manual
measurement. Thanks for your understanding.
4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、High-speed USB2.0 interface, data transmission speed reaches up to 480Mb/s.
2、Large area array CMOS progressive scan image sensor.
3、0.5X CCD eyepiece adapter, specially designed for microscope photo taking and video recording.
4、Support static and dynamic image capture.
5、Can be controlled to capture the any position of the image.
Package Weight and Dimension
| Weight | 0.85 lb |
| Width | 4.29 Inch |
| Height | 3.51 Inch |
| Length | 6.63 Inch |
