Product Overview
Material: Plastic + Iron
Product Size: Approx. 32 x 22 x 12mm / 1.3 x 0.9 x 0.5in
Product Wire Length: Approx. 260mm/10.2in
Output Shaft: 20T Diameter: Approx. 4.9mm/0.2in
Stall Torsion: 2.0kg/cm (4.8V)
Working Speed: 0.11 Seconds / 60°(4.8V)
Voltage: 4.8-6.0V
Maximum Angle: 180°
Temperature Range: 0℃-55℃
Deadband Width: 5 usec
Plug Type: for JR, for FUTABA Universal
Engine Type: Coreless Motor
Gear Type: Metal Gear
Suitable for RC Helicopter, Mini Boat, RC Car, Small Robot, etc
Features
1、Large Load: Micro servo has stable structural materials, and the metal gear can withstand higher loads to ensure the normal operation of the steering gear.
2、Good Performance: All metal gear micro servo has high operating efficiency, low noise, quick response, and low power consumption during operation.
3、Efficient: Mini servo coreless motor design, double ball bearings, provide quick response and ultra high efficiency, energy saving, to meet your various needs.
4、Small And Lightweight: Micro servo motor, small size, light weight and easy to carry, it contains different servo arms to meet your needs and bring you convenience.
5、High Quality Material: The micro servo is made of high quality plastic and iron material, which is sturdy and durable, with stable performance and long service life.
Package List

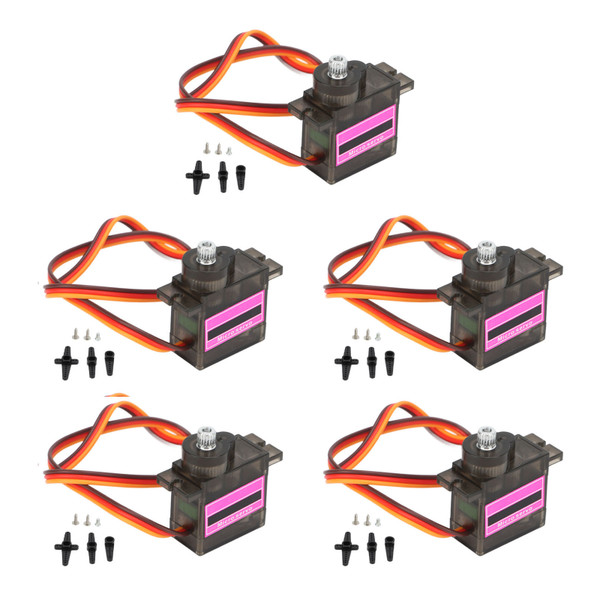

5 x 9g Micro Servo
15 x Servo Arm
15 x Screw
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.56 Inch |
| Length | 5.85 Inch |
