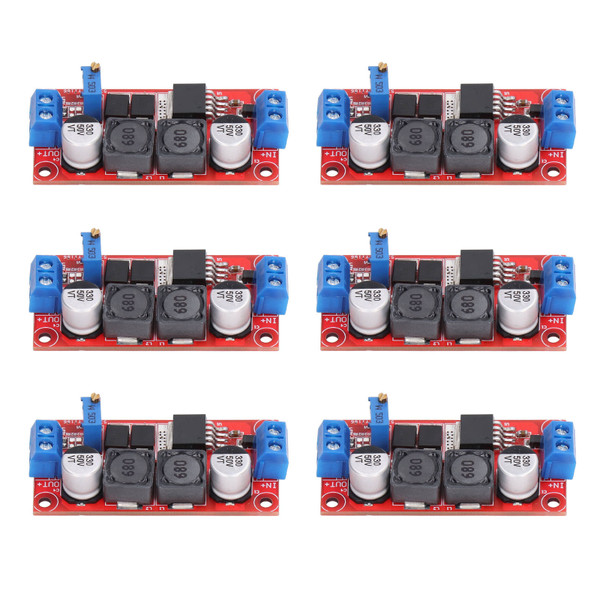

6PCS DC Buck Module Voltage Regulator Adjustable Power Board High Current 5‑38V to 1.25‑36V

Item Type: DC Buck Module
Module Type: Non Isolation Buck Module
Output Current: 0-5A (long term 4A) 50W
Working Temperature: -40~+85℃
Working Frequency: 180KHz
Short Circuit Protection: Yes (current limit 8A)
Over Temperature Protection: Yes (automatically turn off the output after over temperature)
Input Reverse Polarity Protection: Yes
Installation Method: 4pcs 3mm screws
Wiring Method: Terminal IN input, OUT output
Length: Approx. 60mm / 2.4in
Width: Approx. 30mm / 1.2in
Height: Approx. 13.5mm / 0.5in

Features

1、VOLTAGE AND CURRENT: DC buck module, the input voltage is 5‑38V, the output voltage is 1.25‑32V continuously adjustable, and the output current is 0‑5A.
2、EXCELLENT PARTS: Consists of solid state capacitors that can effectively filter high frequency noise, suitable for various electronic projects.
3、COMPACT SIZE: This buck module has a compact structure, with standard screw mounting holes for installation in narrow spaces.
4、HIGH EFFICIENCY: Adopt synchronous rectification technology, significantly improve conversion efficiency, expand operating voltage and current.
5、GOOD PROTECTION: The voltage regulator module has short circuit, over temperature and reverse input protection, safe and reliable in operation.

Package List

6 x Buck Module
