8 in 1 Fiber Optic Cable Tester with OTDR Event Maps Stable Light Source Optical Power Meter 24dB Connector with FC APC 100‑240V US Plug

Item Type: Fiber Optic Cable Tester
Material: ABS, Silicone
Mini Pro OTDR Parameters:
Model: JW3302SJ
Wavelength: 1610nm±20nm Online Testing
Fiber Type: G.652 SM Fiber
Dynamic Range: 24dB
Event Blind Zone: Approx. 3meter / 3.28yd
ATT Blind Zone: Approx. 8m / 8.75yd
Testing Range: Approx. 10m to 60km
Pulse Width: 5ns to 10us
Distance Accuracy:±(1m+Sampling Interval +0.005%×Test Distance)
Loss Accuracy: ±0.2dB/dB
Sampling Point: 16k to 128k
Sampling Resolution: Approx. 0.05-8m / 0.05-8.75yd
Reflection Accuracy:±3dB
Data Storage:
Internal: ≥Approx. 600m / 656yd
External: Expandable Memory Card, up to 256G(Not Included)
Laser Safety Level: Class Ⅱ level
File Format: SOR Standard File Format
Connector: FC/APC (Interchangeable SC, ST)
OPM Parameters:
Waveband: Approx. 800nm to 1700nm
Interface Type: Universal Joint FC/SC/ST
Test Range: -50dBm to +26dBm
Uncertainty:±5%
Frequency Identification:CW/270/330/1k/2kHz
Calibration Wavelength: 850/1300/1310/1490/1550/1577/1625nm
LS Parameters:
LD Type: FP LD
Output Wavelength: 1610nm±20nm
Output Power:≥ -5dBm
Modulation Frequency:270/330/1k/2kHz
Stability: CW, ±0.5dB/15min (Test After15mins of Preheating)
Connector: FC/APC (Interchangeable SC, ST)
VFL Parameters:
Working Wavelength: 650nm±20nm
Output Power:≥10mW
Mode: CW/1Hz/2Hz
Connector: FC/SC/ST
RJ45 Cable Length Measurement:
Test Range: Approx. 300m / 328yd
Other Parameters:
Display:3.5 Inch Color LCD Monitor
Data Interface: Micro USB
Built in Battery: 4000mAh Lithium Battery (Included)
Endurance: Standby Time>20h, Measurement Time>12h
Operating Temperature:-10℃ to +50℃
Storage Temperature:-40℃ to +70℃
Relative Humidity: 0 to 95%Non Condensing
Product Size: Approx. 173 x 82 x 37mm / 6.8 x 3.2 x 1.5in
Function: OTDR/OPM/LS/VFL/RJ45 Sequence/ Insertion loss /Flashlight

Features

1、8 in 1: The tester is also highly integrated with 8 functions, OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, IL and lighting functions.
2、Micro USB Interface: Optical power meter compact structure, solidly housing design, shockproof and drop proof, Micro USB data interface, support external storage memory card for additional storage (not included).
3、Accurate Testing: 3.5 inch color LCD display, more accurate test results, better repeatability, a good choice for long term field work.
4、Applications: Fiber optic tools are used to evaluate the construction and maintenance of FTTx and access networks, identify fiber breaks, measure cable lengths, and calculate relative optical power loss.
5、Rechargeable Battery: Network cable tester has a built in rechargeable lithium battery with a large capacity of 4000mAh, so you don't have to worry about insufficient power for a long life.

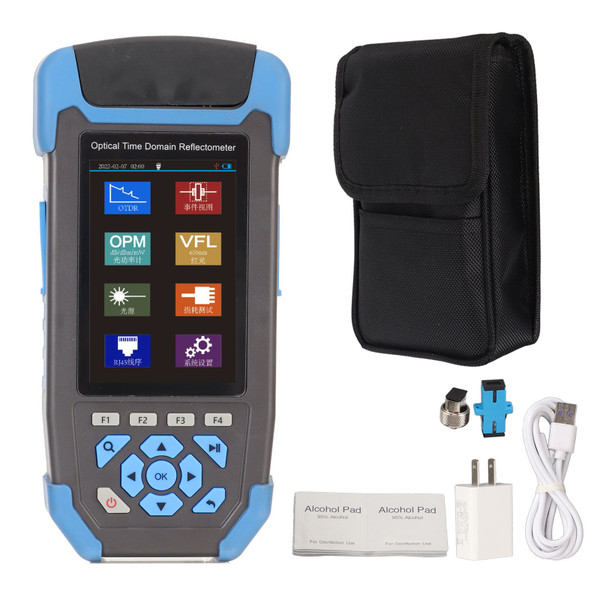

Package List

1 x Fiber Optic Cable Tester (Ship with Inbuilt Battery)

2 x Fiber Optic Adapter

1 x Charging Cable

1 x Power Adapter

1 x Portable Storage Bag

1 x User Manual

5 x Clean Cotton Pad

1 x Analysis Software CD
