Product Overview
Features:
Specification:
Material: aluminum alloy, electronic components
Working frequency range: 1-3000MHZ
Characteristic impedance: 50 ohms
Stopband 76-120MHZ, anti-FM interference
Passband insertion loss <1dB
Maximum input power: +30dBm (1W)
Input and output interface: SMA_KE (outer screw inner hole)
Weight: Approx.30g/1.1oz
Package list:

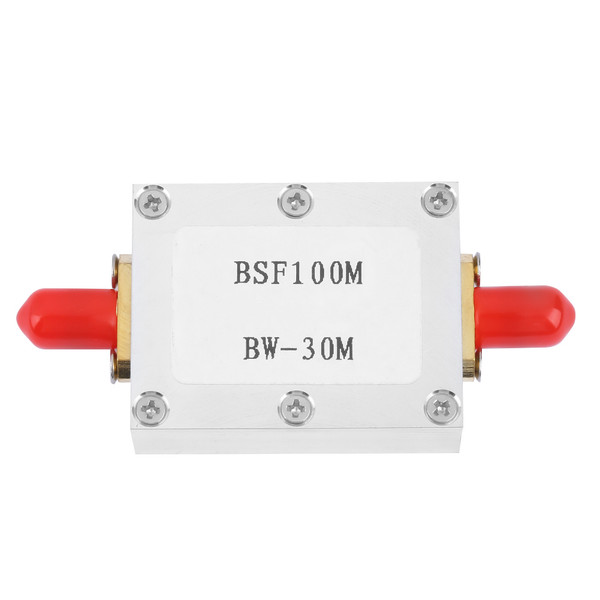

1 x Band stop filter
Specification:
Material: aluminum alloy, electronic components
Working frequency range: 1-3000MHZ
Characteristic impedance: 50 ohms
Stopband 76-120MHZ, anti-FM interference
Passband insertion loss <1dB
Maximum input power: +30dBm (1W)
Input and output interface: SMA_KE (outer screw inner hole)
Weight: Approx.30g/1.1oz
Package list:
1 x Band stop filter
Features
1、100% brand new and high quality
2、The Operating frequency range is 1-3000mhz,Maximum input power is +30dBm(1W)
3、Stop band 76-120MHZ,Stopband inhibits >50dB @88-108m andanti-FM interference
4、Low insertion loss of passband,which is lower 1dB
5、CNC aluminum alloy housing, sturdy and durable
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 0.39 Inch |
| Length | 3.9 Inch |
