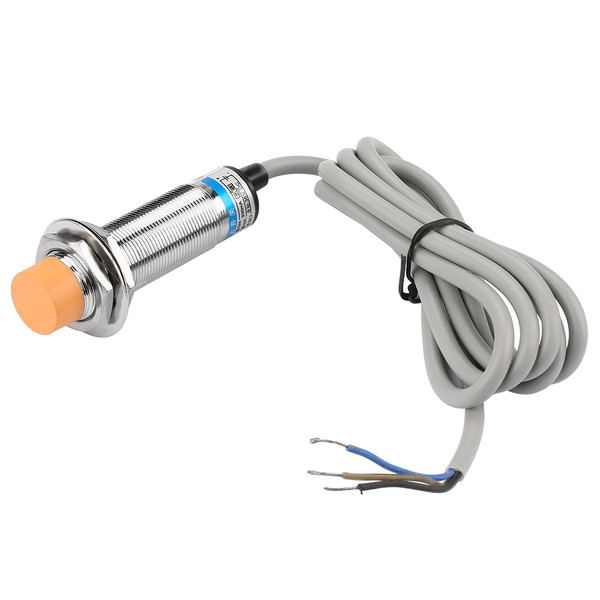

8mm Inductive Proximity Sensor Switch DC NPN 3-Wire Normally Open LJ18A3-8-Z/BX

Features:

Specification:
Model: LJ18A3-8-Z/BX
Detection distance: 8mm±10%
Setting distance: 0-7mm
Delay distance: <10% of detection distance
Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal)
Standard detection object: Iron 30*30*1mm
Response frequency: 0.5kHz
Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA
Control output: N.P type: <300mA, D type: <200mA, A type: <400mA
Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption
Ambient temperature and humidity: -30~65℃, 35-95%RH
Temperature influence: Temperature range -30~65℃, at 23℃, ±15% detection distance; Temperature range -25~60℃, at 23℃, ±10% 0detection distance
Insulation impedance: >50MΩ
Housing material: Nickel plated brass
Detection surface: ABS
Weight: Approx. 80g/2.8oz

Package list:
1 * Inductive Proximity Switch

Features

1、This is a normally open proximity switch sensor with 8mm detection distance.
2、When proximity switch is close to some target object, it will send out control signal.
3、It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.
4、High sensitivity, quick response, stable performance.
5、Non-contact detection avoids the sensor and the target object from damages.
