Product Overview

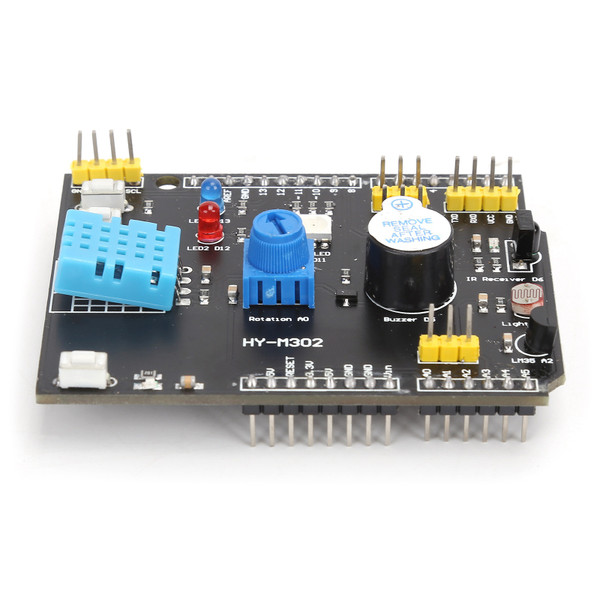

Item Type: Multifunction Expansion Board
Material: Resin
The Functional Modules Are as Follows:
2-way button module
2-way LED module
Full color LED module
Infrared receiver module
Brightness sensor module
LM35D temperature sensor module:
Passive buzzer module
Rotary potentiometer module
Temperature and Humidity Sensor Module:
1 x I2C Interface (A4 SDA/A5 SCL)
1 x TTL serial port
2 x Digital ports (D7/D8)
1 x Analog port (A3)
Reset button
Material: Resin
The Functional Modules Are as Follows:
2-way button module
2-way LED module
Full color LED module
Infrared receiver module
Brightness sensor module
LM35D temperature sensor module:
Passive buzzer module
Rotary potentiometer module
Temperature and Humidity Sensor Module:
1 x I2C Interface (A4 SDA/A5 SCL)
1 x TTL serial port
2 x Digital ports (D7/D8)
1 x Analog port (A3)
Reset button
Features
1、Expansion board integrates multiple module functions, nine kinds of functions concentrated in this one module.
2、No welding, no connection, just download the program directly to complete the experiment.
3、Expansion ports are reserved, and other module experiments can be completed.
4、Custom heightened pin headers will not short circuit with the USB interface of the other board.
5、Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.
Package List
1 x Multifunction Expansion Board
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.17 Inch |
| Length | 4.68 Inch |
