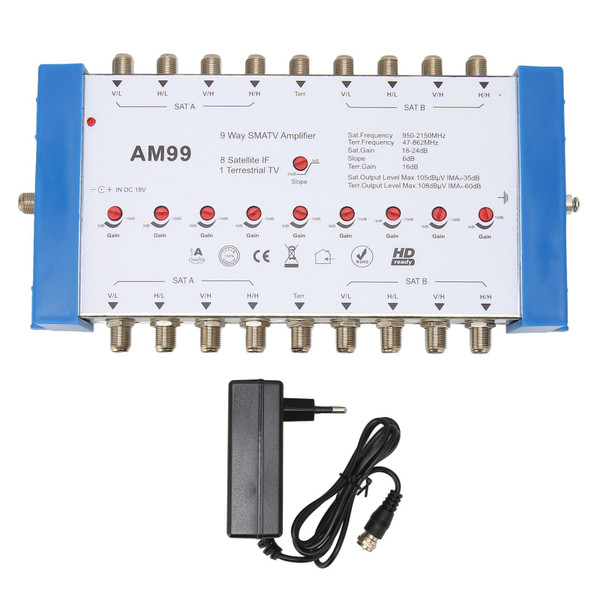

9 Way SMATV Amplifier Professional Plug and Play Satellite TV Splitter for Indoor Use 100‑240V EU Plug

Item Type: 9 Way SMATV Amplifier
Material: Metal, Plastic
Frequency Range: Terr: 47-862MHz, SAT: 950-2150MHz
Input: 8SAT+1Terr (F Connectors)
Output: 8SAT+1Terr (F Connectors)
SAT.Gain: 18-24dB
Slope: 6dB
Gain: 16dB
Gain Adjustable Range: 15dB
Return Loss: 10dB
Terr Maximum Output Level: 108dBuV IMA₃-60dB
Sat Maximum Output Level: 105dBuV IMA₃-35dB

Features

1、Satellite IF, Input and Output: Satellite TV splitter with 8 satellite IF and 1 terrestrial TV input and output.
2、High Isolation and Return Loss: High performance 9 way SMATV amplifier with high isolation and return loss.
3、Input and Output Levels: 9 way satellite TV amplifier with high input level and high output level.
4、DC Pass Through: 9 way satellite TV amplifier with output port, input port DC pass through.
5、Unique Design: Satellite TV splitter has a metal case with plastic bracket, designed for indoor use.

Package List

1 x 9 Way SMATV Amplifier

1 x Power Adapter
