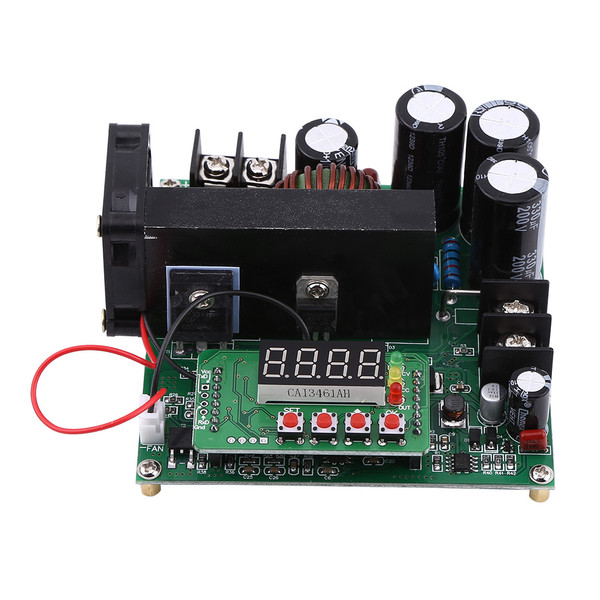

900W DC High Precise Control Boost Converter DIY Voltage Step Up Module Regulator

Description:
Features:
Specifications:
Output Power: 900W
Output Current: 0-15A
Operating Temperature: -40℃-+85℃
Frequency: 150KHz
Size: 110 x 96mm / 4.33 x 3.78"
Display
Meaning
00.00
0.000
Current,0.000~6.000A
C.000,C0.00,C00.0,C000.
Capacity,(AH), e.g.:C.123=0.123AH,C1.23 = 1.23AH,C12.3 = 12.3AH,C123.= 123AH
--0-
Function0
--1-
Function1
--2-
Function2
--y-
Function On
--n-
Function Off
SA.-* (*=0~9)
Save parameter to a position(0~9)
Lo.-* (*=0~9)
Recall parameter from a position(0~9)
----
Save Parameter
Function 0: Automatically output after power on.
Function 2: Automatically display parameters in turn after output.
On/Off(default off):
Long press "OK" button, then power on the module. It will display "--0-","--1-","--2-" in turn. Release "OK" button when it displays "--0-" to turn on/off function 0; release "OK" button when it displays "--1-" to turn on/off function 1; release "OK" button when it displays "--2-" to turn on/off function 2. ("--y-"=on, "--n-"=off)
Package Includes:
1 x Boost Converter

Features

1、Using advanced advanced microprocessor, the boost converter can accurately adjust output voltage and current
2、The memory function supports storing 10 groups of parameters and can be freely stored or recalled
3、High quality power component combined with peripheral precision op-amp CV and CC loop would highly improve the overall performance of module
4、The converter supports input voltage stability and protection function and constant voltage and constant current regulation function
5、4 digit display could show real-time voltage, current, power and capacity, and you can select automatic or manual display in turn
