Product Overview

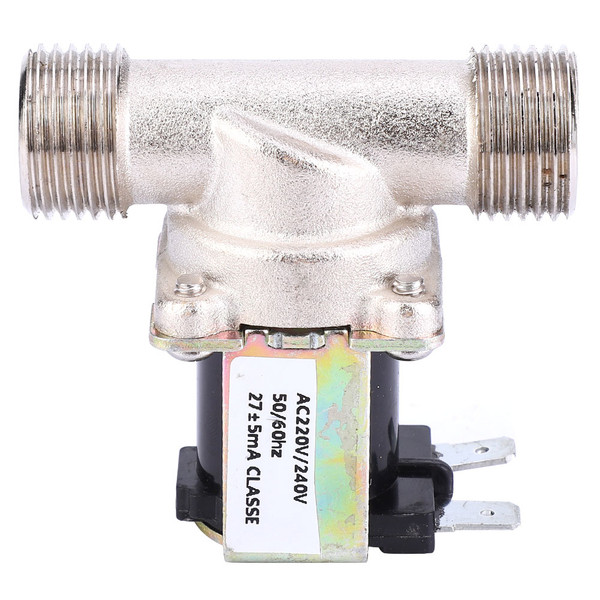

Item Type: Guided (One-Way) Solenoid Valve
Rated Voltage: AC220/240V
Working Mode: Short-Term Quota System (Intermittent Period Work System)
Thread: G1/2
Fluid: (0-55°C) Water
Water Pressure: 0.02-0.8MPa
Life: >100000 times
Insulation Class: Class E
Altitude: ≤2500m
Ambient Temperature: 0-40°C
Relative Humidity: <95%RH (25°C)
Water Flow Characteristic:
Water Pressure (MPa) 0.02 0.1 0.3 0.8
Flow (L/min) >5 >11 >18 >32
Rated Voltage: AC220/240V
Working Mode: Short-Term Quota System (Intermittent Period Work System)
Thread: G1/2
Fluid: (0-55°C) Water
Water Pressure: 0.02-0.8MPa
Life: >100000 times
Insulation Class: Class E
Altitude: ≤2500m
Ambient Temperature: 0-40°C
Relative Humidity: <95%RH (25°C)
Water Flow Characteristic:
Water Pressure (MPa) 0.02 0.1 0.3 0.8
Flow (L/min) >5 >11 >18 >32
Features
1、This is a normally closed type solenoid valve for water inlet control.
2、High quality brass valve body, corrosion resistant and durable in use.
3、Electroplating surface treatment to prevent rust.
4、Precision threads ensure secure connection and good seal performance.
5、Solenoid type valve control, sensitive switching, stable and reliable.
Package List
1 x Solenoid Valve
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 5.07 Inch |
| Height | 1.17 Inch |
| Length | 7.02 Inch |
