Product Overview
Features:
Specification:
Model: KA0-10KH
Type: ON/OFF
Voltage & Current: 380V 10A: AC220V/380V 10A
Insulation resistance: 200（MΩ）
Appearance size: 90*60*60mm/3.5*2.4*2.4in
Mounting hole spacing: 78mm/3.1in
Note: the mounting hole spacing is approx. 7.7cm, and the rear mounting location is 4*4.1* 2.5cm.
Weight: Approx.120g/4.2oz
Package list:

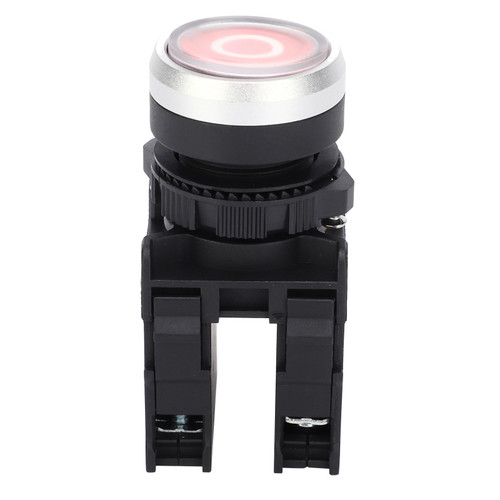

1 x Pushbutton Switch
Specification:
Model: KA0-10KH
Type: ON/OFF
Voltage & Current: 380V 10A: AC220V/380V 10A
Insulation resistance: 200（MΩ）
Appearance size: 90*60*60mm/3.5*2.4*2.4in
Mounting hole spacing: 78mm/3.1in
Note: the mounting hole spacing is approx. 7.7cm, and the rear mounting location is 4*4.1* 2.5cm.
Weight: Approx.120g/4.2oz
Package list:
1 x Pushbutton Switch
Features
1、Suitable for AC 50Hz (60Hz), voltage up to 380V, 220V electrical circuits.
2、ON pushbutton are self-locking, OFF pushbutton are automatic reset.
3、Easy to work, direct switch does not require contactor.
4、This switch is design with NO NC, can control your motor directly, interior screw terminals ensure easily wiring.
5、Widely used in mechanical equipment, textile machinery, etc.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 2.34 Inch |
| Length | 3.9 Inch |
