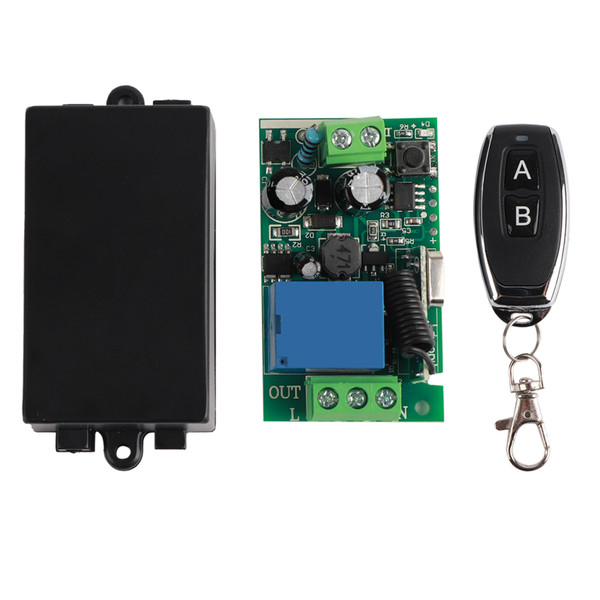

Product Overview
Material: PCB board and electronic components
Gross Weight: 80g/2.8oz
Technical Indicators:
Input Voltage: AC85V-AC220V
RF Operating Frequency: 315M, 433M optional
RF Working Mode: Superheterodyne reception
Receiving Sensitivity: - 107 dbm
Remote Control Distance: More than 100 meters in the open space.
Number of Remote Controllers That Can be Stored: 25
Support Remote Control Types: Learning code, fixed code, rolling code can be customized
Multiple Working Modes: Inching, self locking and interlocking
Output Signal: One circuit of switch signal or one circuit of AC220V voltage signal can be output
Coding Method: Learning code
Modulation Mode: ASK
Operating Temperature: - 10℃ to +70℃
Size: 55x33x18mm/2.2x1.3x0.71in
Wiring Instructions:
50: Live wire input
N: Neutral line input
OUT L: Live wire output
OUT N: Neutral line output
Features
1、Remote Controller Type: This wireless remote control switch module supports remote controller type, learning code, fixed code, rolling code can be customized.
2、Multiple Working Modes: The switch relay module receiver has multiple working modes that are inching, self locking and interlocking.
3、Working Parameter: The input voltage is AC85V‑AC220V, RF working frequency is 315M, 433M optional, and RF working mode is superheterodyne receiving.
4、Remote Control: Receiving sensitivity is ‑ 107 dbm, the remote control distance: more than 100 meters in open space, number of remote controllers that can be stored: 25.
5、PCB Board and Electronic Components: This remote control switch transmitter is made of premium PCB board and electronic components that has good performance.
Package List
1 x Wireless Remote Control Switch Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 1.17 Inch |
| Length | 3.12 Inch |
