Product Overview
Features:
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
Measure AC/DC current (minimum 1mA by jaws)
Measure microamps μA (minumum 0.1μA by terminals)
V-alert measurement, live-wire check
Measure frequency, temperature, resistance, continuity and capacitance
Clamp on frequency function
Auto range, Auto power off, data hold, low battery indication with backlight
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Specifications:
Model: ACM91
Color: Black
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600μF/6000μF 0.1μF/1μF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: -20℃~500℃ 1℃/2℉ ±(2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (No included)
Security certification: EMC, FCC, ROHS, LVD, WEEE
Weight: 355g / 12.5oz

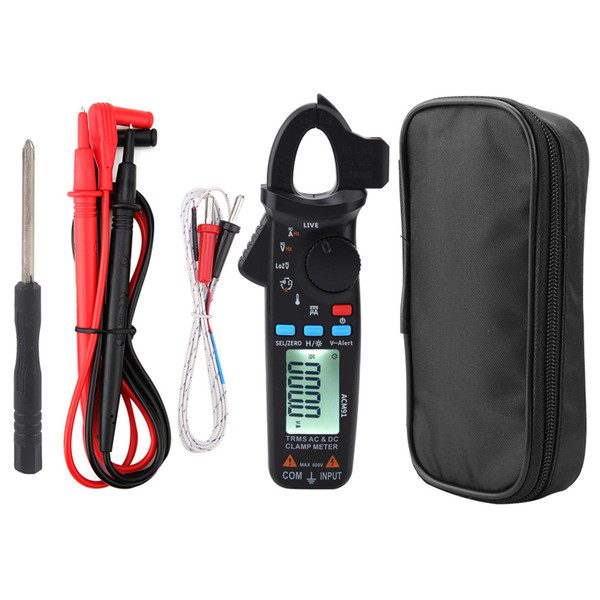

Package list:
1 * Digital Clamp Meter
1 * Probes
1 * Thermocouple
1 * Carrying Case
1 * Screwdriver
1 * User Manual
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
Measure AC/DC current (minimum 1mA by jaws)
Measure microamps μA (minumum 0.1μA by terminals)
V-alert measurement, live-wire check
Measure frequency, temperature, resistance, continuity and capacitance
Clamp on frequency function
Auto range, Auto power off, data hold, low battery indication with backlight
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Specifications:
Model: ACM91
Color: Black
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600μF/6000μF 0.1μF/1μF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: -20℃~500℃ 1℃/2℉ ±(2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (No included)
Security certification: EMC, FCC, ROHS, LVD, WEEE
Weight: 355g / 12.5oz
Package list:
1 * Digital Clamp Meter
1 * Probes
1 * Thermocouple
1 * Carrying Case
1 * Screwdriver
1 * User Manual
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
1、Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
2、Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
3、Measure frequency, temperature, resistance, continuity and capacitance.
4、Auto range, Auto power off, data hold, low battery indication with backlight.
5、Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards.
Package Weight and Dimension
| Weight | 0.74 lb |
| Width | 3.51 Inch |
| Height | 2.34 Inch |
| Length | 8.19 Inch |
