Acoustic Guitar 5 Band EQ Equalizer Pre Wired Guitar Preamps Piezo Pickup with Tuner Function

Item Type: Acoustic Guitar 5 Band Equalizer
Material: Plastic, Electronic Components
Battery: 6F22 9V Battery x 1 (Battery not included)
Frequency Response: 20Hz-20KHz
Control Range:
Bass: ±12dB at 60Hz
Middle: ±12dB at 500Hz
Middle 2: ±12dB at 1.2KHz
Treble: ±12dB at 3KHz
Presence: ±12dB at 8KHz Middle 2
Control: 600Hz-2KHz
Tuning Notes: Chromatic, Guitar Mode
Tuning Modes: Chromatic and Guitar Tuning (7B, 6E, 5A, 4D, 3G, 2B, 1E)

Features

1、Guitar Pickup: Provides outstanding sound and pickup range, can be installed in any standard acoustic guitar body. Equipped with tuning function.
2、5 Band EQ System: 5 band EQ equalizer adjusts frequencies with Push BASS, MIDD, TREB, PRES, BLEND. Includes volume control, power on off button.
3、Accurate Control: 5 band equalizer allows you to accurately determine the location and obtain the correct sound. Real loudness control function.
4、Easy Assembly: Pre wired, includes 2.5mm plug in cable. Battery compartment with built in 6F22 9V battery holder (battery not included in delivery).
5、Professional Tuning: Suitable for guitars and basses. Catches vibrations from guitar bridge through piezo strip pickup, driven by 9V power supply.

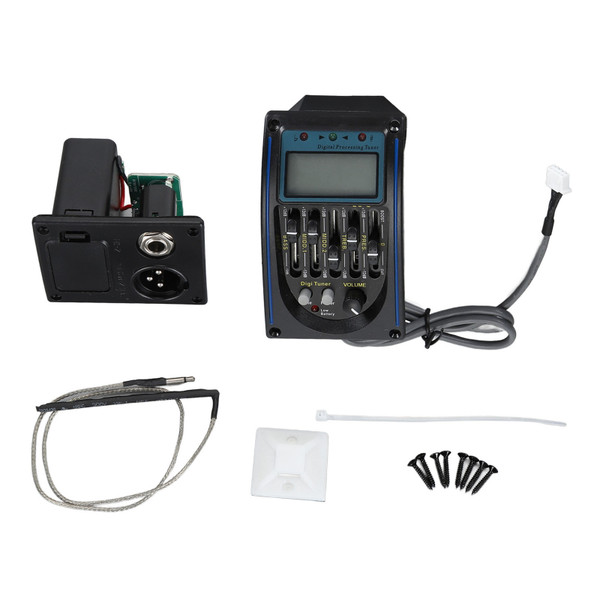

Package List

1 x EQ Pickup
1 x Piezo Pickup Cable
1 x Battery Case
8 x Screws
1 x Adhesive Plate
1 x Cable Tie
