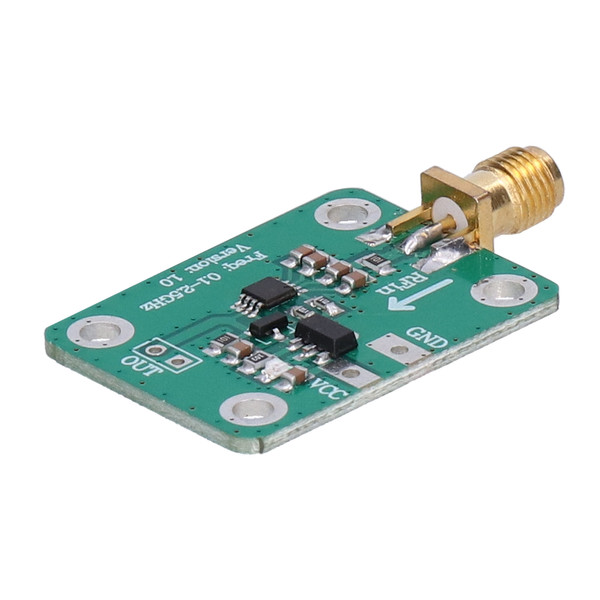

Product Overview
Item Type: RF Amplifier Module
Material: PCB
Model: AD8313
Working Frequency: 0.1-2.5 (GHz)
Measurement Power: 72 (-2dBm)
Output Voltage: 0.5-1.65V
Detection Slope: 18mV/DBm (Typical Value)
Input Impedance: 50 Ohms
Power Supply Voltage: 7-15V
Material: PCB
Model: AD8313
Working Frequency: 0.1-2.5 (GHz)
Measurement Power: 72 (-2dBm)
Output Voltage: 0.5-1.65V
Detection Slope: 18mV/DBm (Typical Value)
Input Impedance: 50 Ohms
Power Supply Voltage: 7-15V
Features
1、Large heat dissipation area, which can better maintain long‑term operation.
2、Adopting 1.6mm/0.06in PCB thick double‑sided board, full tinning process to ensure good passing performance of large and small currents.
3、One‑piece molding without burrs, smooth surface, very convenient and practical.
4、Due to the careful and meticulous manufacturing, making it reliable and safe to use.
5、Easy to install, no complicated tools required, convenient and easy for you to use.
Package List
1 x RF Amplifier Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 0.39 Inch |
| Length | 3.51 Inch |
