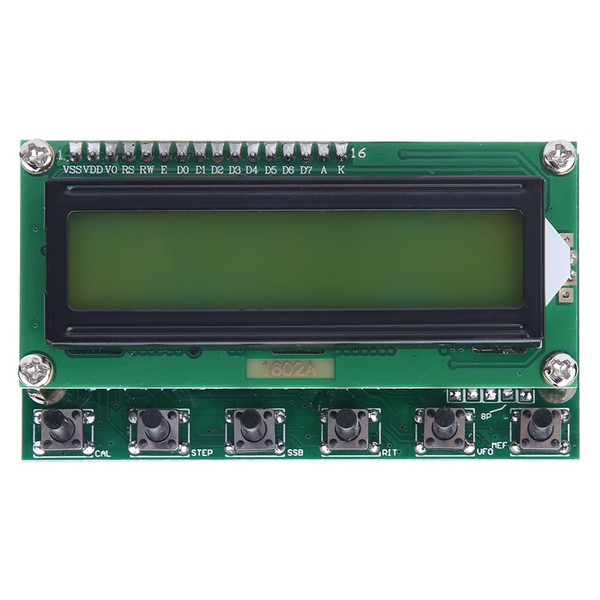

AD9850 DDS Signal Generator DC 8V-9V 6 Band 0-55MHz Frequency LCD Digital Module

Item Type: Signal Generator
Display: 1602 LCD
Input Current: 200mA
Frequency Range: 0-55MHz
6 Bands: 3.8, 7, 9, 14, 18 Or 21, 27 Or 29
Product Size: Approx. 80 x 45 x 30mm / 3.15 x 1.77 x 1.2in
Keys and Connection Interfaces:
ENC: Encoder switch
MEM: Switch for memory mode
VFO: Transfer from VFO A to VFO B, or from VFO B to VFO A.
SSB: Working mode change: circulate from USB, LSB, AM, CW, then keep looping...
RIT: Fine tuning to receiving frequency
CAL: Set functions
KB-1 and KB-2 have common shared pin, but is not GND

Features

1、Support 0-55MHz continuous adjustment, the frequency is 1Hz.
2、The generator has a 78L05 voltage regulator. When the input current is 200MA, the input voltage of 8-9V will be the ideal voltage.
3、The 12V input voltage can only be used for short-term testing, otherwise it will cause the board to heat up.
4、5p/6p connect to encoder as per photo. 7p of the middle connects to digital matrices input. 14p (8V GND) is 8V power supply from main board.
5、If powered by the motherboard, the DDS does not require a separate power supply.
6、1 to 6 correspond to 6 frequency bands: 3.8, 7, 9, 14, 18 or 21, 27 or 29.
7、ISB, USB, CW are the three mode choices.
8、DT is a signal from main board.

Package List

1 x Signal Generator
