Product Overview

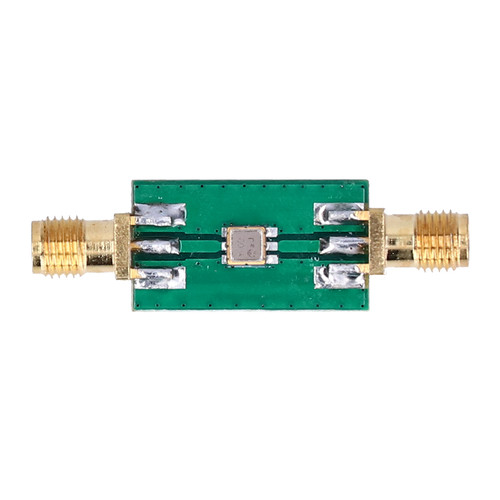

Item Type: ADS-B Filter
Material: PCB
Working Frequency: 1090±15MHz
Insertion Loss: 1.5db
Out-of-Band Suppression: 40dB at 50MHz
Input Impedance: 50 ohm
Output Impedance: 50 ohm
Maximum Input Signal Strength: 13dbm (20mw)
Input Interface: SMA-K (SMA female)
Output Interface: SMA-K (SMA female)
Material: PCB
Working Frequency: 1090±15MHz
Insertion Loss: 1.5db
Out-of-Band Suppression: 40dB at 50MHz
Input Impedance: 50 ohm
Output Impedance: 50 ohm
Maximum Input Signal Strength: 13dbm (20mw)
Input Interface: SMA-K (SMA female)
Output Interface: SMA-K (SMA female)
Features
1、One‑piece molding without burr, bring smooth surface and simple installation
2、Printed circuit board adopt good quality 1.6mm thickness double‑sided board
3、After full tinning process to ensure good passing performance of large and small currents
4、Come with large area heat dissipation, which can improve service life well
5、Software radio filter module possess stable structure and high performance
Package List
1 x ADS-B Filter
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.78 Inch |
| Length | 3.51 Inch |
