Product Overview

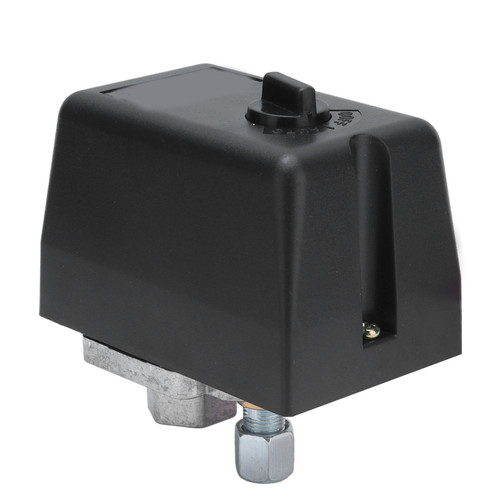

Item Type: Pressure Switch
Material: ABS + Aluminium
Switch Pressure Range 0.5-0.8MPA (5-8BAR) (90-120PSI)
Rated Voltage: 220V
Exhaust Pipe: Approx. 6mm / 0.24in
Contact Method: Normally Closed
Connector Size: 12mm / 0.47in (approx.), 1/4 inch
Outer Diameter of Pressure Relief Port: Approx. 9.5mm / 0.37in
Maximum Current: 15A
Working Pressure: 5-8KG
Life: 80,000 times.
Material: ABS + Aluminium
Switch Pressure Range 0.5-0.8MPA (5-8BAR) (90-120PSI)
Rated Voltage: 220V
Exhaust Pipe: Approx. 6mm / 0.24in
Contact Method: Normally Closed
Connector Size: 12mm / 0.47in (approx.), 1/4 inch
Outer Diameter of Pressure Relief Port: Approx. 9.5mm / 0.37in
Maximum Current: 15A
Working Pressure: 5-8KG
Life: 80,000 times.
Features
1、High Accuracy: This air compressor pressure switch has high accuracy voltage regulation and sensitive response.
2、Great Control: Equipped with on and off switch lever, the simple operation adds more convenience to the control.
3、Saving Energy: Works perfectly in saving the electric energy and improving the work efficiency as well, useful.
4、Practical Use: Allows for extensive application in private workshops and factories, very practical and reliable.
5、Easy to Install: Comes with a compact size and a light weight, the installation is very convenient to complete.
Package List
1 x Pressure Switch
2 x Pressure Regulating Gauge
2 x Male Thread
2 x Male Threaded Valve
1 x Switch Control Valve
Package Weight and Dimension
| Weight | 1.58 lb |
| Width | 4.29 Inch |
| Height | 3.51 Inch |
| Length | 5.85 Inch |
