Product Overview
Material: ABS
Model: FG1485
Supply Voltage: 12-24V DC
Power Consumption: <5W
Working Temperature: -20-80℃ ( Default )
Measurement Accuracy: ±0.5℃,±3%RH (25℃ 60%RH), Resolution: 0.1℃,0.1%RH
Output Signal: RS485 for MODBUS RTU
Leading Wire Length: Approx. 49cm/19.3in ( Manual measurement will have less than the error. )

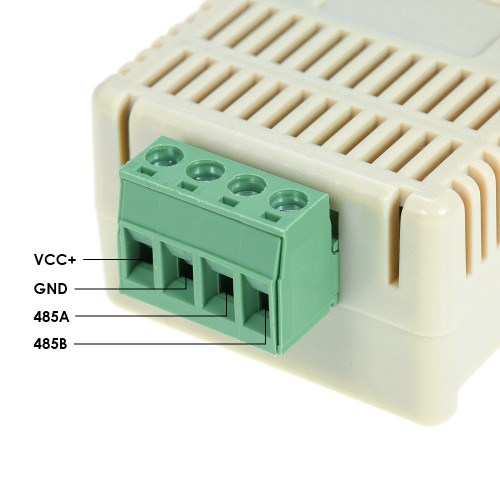

Red: VCC, Yellow: A+, Black: GND, White: B-.
Features
1、Excellent ABS Material: This temperature and humidity transmitter is made of excellent ABS material, which is sturdy and wear resistant, high temperature resistant, and has a long service life.
2、Quick Response: This temperature and humidity transmitter can respond quickly and reflect the measured energy changes in real time, so that the control system can make timely adjustments.
3、High Measurement Accuracy: This temperature and humidity transmitter has high measurement accuracy, with accurate measurement results, and can be used in a variety of situations.
4、Easy Wiring: This temperature and humidity transmitter has four wires, and wiring is very simple, you just need to connect the wires and use it.
5、Wide Application: This temperature and humidity transmitter has a wide range of applications and can be used in greenhouses, plant rooms, laboratories and museums.
Package List
1 x Temperature Humidity Transmitter
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.68 Inch |
| Height | 0.78 Inch |
| Length | 6.24 Inch |
