Product Overview
Shell: Aluminum Alloy
Gear: Steel
Drive Shaft: Steel
Bearing: Steel
Steering Link: Stainless Steel
Weight: Approx. 694g / 24.5oz
Features
1、Applicable Model: Front and rear portal axle is suitable for axial SCX10 and for SCX10 II 90046 90047 D90 D110 1/10 RC tracked cars.
2、Metal Product: This front and rear portal axle set is made of 6061 aluminum, CNC work hardened and anodized surface, steel helical gears.
3、Portal Axle Design: The design adopts 20 degree caster angle and 10 degree kingpin angle, the ground clearance is increased by 13mm, and the width is increased by 15mm, which increases the vehicle's ability to pass obstacles in time and driving stability.
4、Steering Structure and Servo Structure: Ackermann steering structure, the steering angle is greater than 45 degree. The appearance is highly simulated, the front and rear gantry are set with inclined shaft eggs, and the passability is good, and the servo structure on the shaft makes the steering force more stable.
5、Spiral Bevel Gear and Axle Gearbox: The gear adopts 8T, 30T spiral bevel gear, which has high transmission efficiency and low transmission noise. The axle gearbox adopts a slope design, which increases the height of the axle gearbox, which is more conducive to passing through obstacles, and installing stainless steel anti friction plates in the parts that are prone to scratches.
6、Drive Shaftand Wheel Axle: The drive shaft adopts a universal joint structure, made of 45 steel, and rotates smoothly. The thickened wheel axle design adopts M5 nut to fix the tire, which can effectively prevent the axle from being deformed and bent.

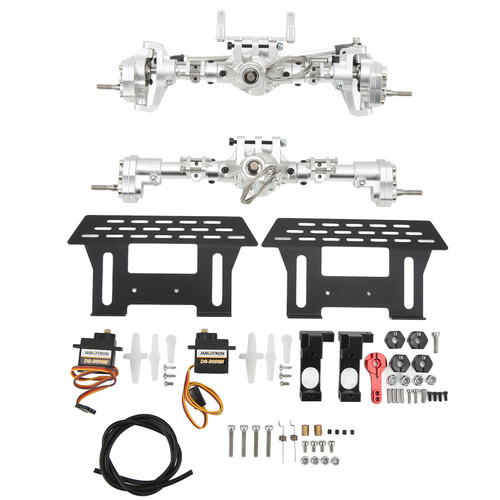

Package List
1 x Front Axle
1 x Rear Axle
1 x Steering Link
1 x Servo Link
1 x 25T Servo Arm
2 x Servo Brackets
2 x Bracket Accessories
15 x Screw
2 x Nuts
Package Weight and Dimension
| Weight | 1.53 lb |
| Width | 5.85 Inch |
| Height | 2.34 Inch |
| Length | 10.14 Inch |
