Product Overview

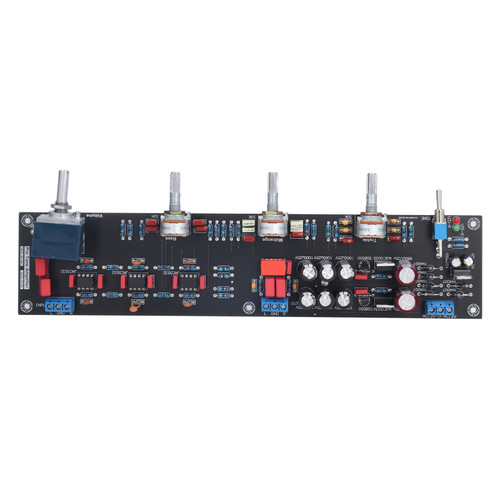

Product Name: Amplifier Tone Board
Material: Copper Clad Laminate
Working Current: <200ma
Signal Input: 300-600mv
Signal to Noise Ratio: 90db
Non Linear Distortion: 0.001%
Maximum Output: 100mv
Frequency Response Range: 20hz-20khz
Material: Copper Clad Laminate
Working Current: <200ma
Signal Input: 300-600mv
Signal to Noise Ratio: 90db
Non Linear Distortion: 0.001%
Maximum Output: 100mv
Frequency Response Range: 20hz-20khz
Features
1、Original Copper Terminal: This amplifier volume control board adopts original copper terminal, the multimeter pen can be directly inserted, the contact is excellent
2、Easy to Carry: This amplifier volume control board has high accuracy, small size, which is easy to carry and store
3、Good Practicability: This amplifier volume control board can adjust volume, treble, bass and volume balance
4、High Quality CCL Material: This power amplifier board is made of high quality copper clad laminate material, which is durable and has long service life
5、Application: This preamplifier volume control board is widely used in home theater, audio, sound speakers, amplifier, etc.
Package List
1 x Amplifier Tone Board
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 0.78 Inch |
| Length | 5.85 Inch |
