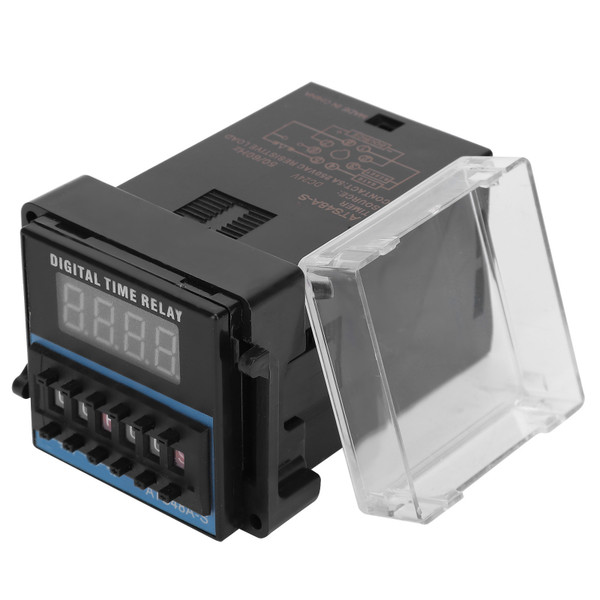

ATS48A-S Professional Adjustable Cycle Time Delay Relay Time Relay Control Component(DC24V )

Condition: 100% Brand New
Item Type: Time Relay
Material: Plastic
Power Consumption: ≤5W
Contact Capacity: AC220V5A
DC30V5A (Resistive)
Mechanical Life: ≥100,000 Times
Electrical Life: ≥100,000 Times
Ambient Temperature: -10℃~+50℃
Altitude: <2000m
Delay Control Precisions: ≤0.3%±0.05 Seconds
Features: A set of power cycle delay contact output, with reset and pause functions
Main Purpose: To control the repeated operation and stop of equipment or alternate operation between two equipment
Delay Range: 0.1 second -99 hours (adjusted by the digital buttons on the surface)
Installation Method: Panel Type: Hole size: Approx. 45 x 45mm / 1.8 x 1.8in
Rail Type: Approx. 35mm / 1.4in standard rail
Device Type: Hole Distance: Approx. 33mm / 1.3in, the mounting screw is 2-M4×20mm / 0.8in

Features

1、It has high accuracy, wide delay range, reliable action performance, and digital setting of delay time.
2、High‑quality contacts, strong conductivity and large current carrying.
3、Used as a delay control component in industrial automation control systems and machinery and equipment.
4、Cycle delay, flexible adjustment, wide range, flexible control mode, strong anti‑interference performance, low working power consumption, large contact capacity, etc.
5、Made of high quality material, safe and eco‑friendly, stable and long service life.

Package List

1 x Time Relay
