Automatic Voltage Regulator 2 Phase MX341B ABS Voltage Regulation Module for Generator AC170‑

Item Type: Automatic Voltage Regulator
Material: ABS
Model: MX341B
Frequency: 50/60 Hz selected by cross connecting copper
Current: 3A per phase
Frequency: 100-120 Hz
Current: 2.7A continuous, 6A in 10 seconds non continuous
Resistance: 15Ω minimum
Power Consumption: 12 Watt maximum
Current Compensation: Load 10Ω

Features

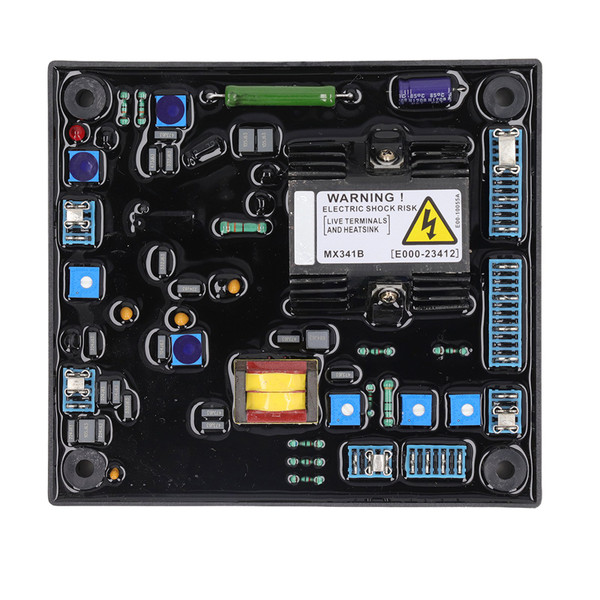

1、AVR Board: This automatic voltage regulator is a 2 phase induction automatic voltage regulator that is part of the excitation system of a brushless generator.
2、Low Interference: Excitation power is sourced from a 3 phase permanent magnet generator to isolate the effects of AVR control circuitry, non linear loads and reduce RF interference to the generator terminals.
3、Stabilizing Output: The AVR senses the voltage in the main winding of the generator and controls the power fed to the exciter stator and lifts the main rotor to maintain generator output.
4、Common Accessories: This voltage regulator board is one of the common accessories for generators, the AVR board can regulate the voltage quickly and stably.
5、Compact Size: This automatic voltage stabilizer is small, lightweight, robust, easy to install and has a long service life.

Package List

1 x Automatic Voltage Regulator
