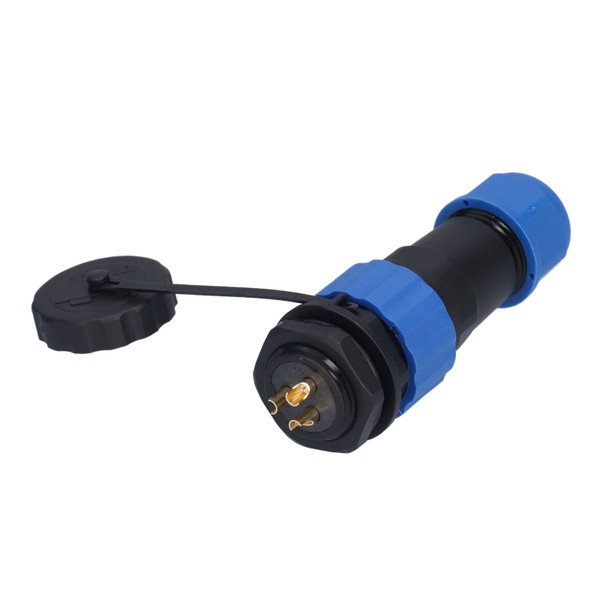

Product Overview
Material: PA66, PA6, PPS, silica gel, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold plated)
Connection Method: Soldering (if solder paste is used, must be cleaned)
Connection Method: Threaded connection
Head Size: Approx. 20mm / 0.8in
Thread Specification: M20x1.5mm
Insulation Resistance: 2000MΩ
Applicable Cables for Shell: Dia 8~11.5mm²
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: Comply with IP68
Features
1、IP68 Waterproof Grade: SP20 rear nut type aviation connector with IP68 waterproof grade and M20x1.5 thread specification
2、Anti Oxidation: Solid pins possess plug resistance, gold plated copper can anti oxidation, bring long service life
3、Good Corrosion Resistance: The waterproof aviation connector shell is made of PA66 and PA6 materials, which has good corrosion resistance and flexibility, and will not cause the safety hazard of cracking due to low temperature
4、Firmer Connection: Using an electric soldering iron to connect the conductive wires can ensure a firmer connection
5、Widely Used In Equipment: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms, etc. and bridge electronic equipment
Package List
1 x Male Connector
1 x Female Connector
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.17 Inch |
| Height | 1.17 Inch |
| Length | 3.9 Inch |
