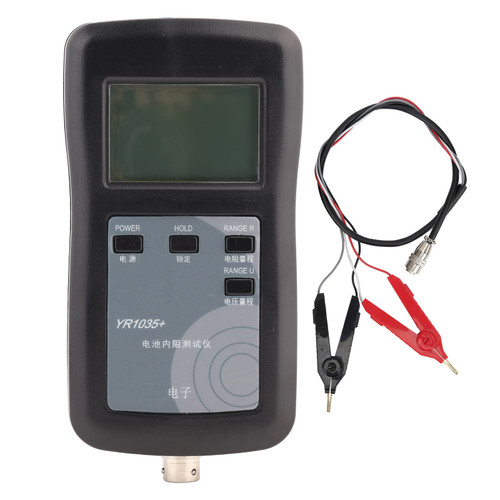

Battery Internal Resistance Test Meter High Accuracy Battery Voltage Tester Analyzer AC220V EU Plug

Item Type: Lithium Battery Voltage Resistance Tester
Material: ABS, Aluminum Alloy
Power Supply Current: 50ma-100ma
Measurement Parameters: ACR, DCV
Measurement Range:
R: 0-2000Ω
V: 0-±100VDC
Resolution: 0.0001mΩ (100μΩ), 0.1mv (100μv)
Accuracy:
R: ±0.5%
V: ±0.5%
Testing Speed: 5 times/s
Testing Range: Auto Switching
Measurement Input: Balanced System
Measurement Probe: LCR Kelvin 4 Wires Clamp

Features

1、18 Bit AD Converter Chip: This battery internal resistance meter uses an 18 bit AD converter chip with high resolution to ensure accurate voltage and resistance measurements, making it very practical.
2、High Resolution: This battery internal resistance test meter uses a dual five digits display and the measurement resolution is up to 0.0001mΩ and 0.1mv, the display is very clear and easy to read.
3、Multifunctional: This battery voltage tester analyzer is multifunctional, can be automatically switched between multiple units, has a wide measurement range, and automatically determines and displays battery polarity without distinguishing battery polarity.
4、High Accuracy: This battery internal resistance tester uses a 1KHZ AC current measurement method, which is highly accurate and suitable for measuring all kinds of batteries or battery packs under 100V.
5、Wide Application: This battery voltage tester has a wide range of applications and is equipped with a computer serial connection terminal, which extends the instrument's measurement and analysis functions, is convenient and rugged, and can be used for testing a variety of batteries.

Package List

1 x Lithium Battery Voltage Resistance Tester
1 x USB Cable
1 x Battery Holder
1 x Battery Clip Wire
1 x Power Cord
1 x Manual
