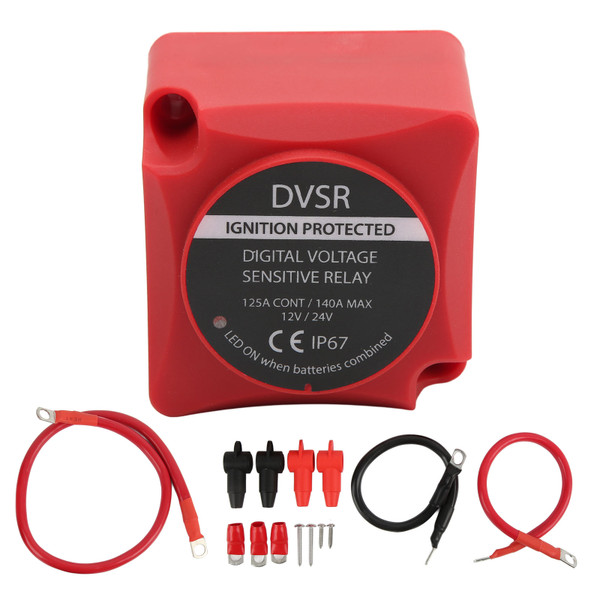

Battery Isolator Kit VSR Voltage Sensitive Relay Automatic Charging DC 12V 24V 140A for ATV UTV RV Car Ship Yacht

Item Type: Battery Isolator Kit
Material: Nylon, rubber
Continuous Rated Current: 125A
Intermittent Current Rating: 140A
Power Consumption: 13mA (standby), 270mA (engaged), 0mA (storage mode)
Terminal Size: M6 (1/4in)
Isolator Yellow Wire Length: Approx. 40cm/15.75in
Isolator Black Wire Length: Approx. 45cm/17.72in
Waterproof Grade: IP67
Applicable Scene: ATV, UTV, RV, car, ship, yacht, etc.

Features

1、Automatic Charging Relay: When charging, two batteries are automatically combined and isolated, and when not charging, the two batteries are used alone to avoid battery exhaustion.
2、Low Power Dissipation: 12/24V input, in the case of storage mode, low power consumption can be achieved, completely avoiding energy waste.
3、Durable Construction: Rugged fiberglass reinforced nylon housing with multi directional openings provides flexibility in panel mounting.
4、Clear Display: Built in LED indication (lights up when VSR starts), remote LED port for VSR status (LED not included).
5、Wide Application: Waterproof grade IP67, widely used in ATV, UTV, RV, car, ship, yacht, etc. Complete accessories and easy installation.

Package List

1 x Relay

4 x Screw

2 x Manual

3 x Harness

3 x Terminal

4 x Rubber Port
