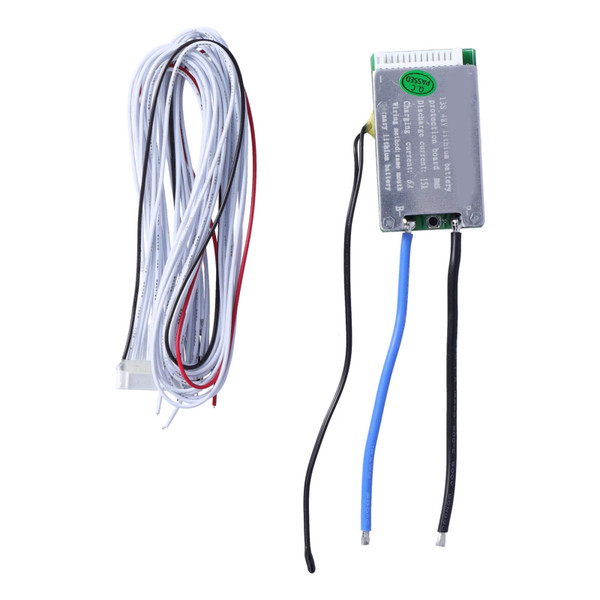

Battery Protection Board BMS PCB for Ternary Lithium Cell Pack Same Mouth Balance 13S 48V15A(6A Charging)

Item Type: Battery Protection Board
Protection Function: Overcharge, overdischarge, overcurrent, temperature control, balance protection, etc.
Charging Voltage: Number of strings·overcharge voltage(ternary 4.2V)
Applicable Single Battery Voltage: 3.7V
Overcharge Protection:
Detection Voltage: 4.25V±0.05V
Detection Delay: 1S
Release Voltage: 4.15V±0.05V
Balance Voltage:
Detection Voltage: 4.18V
Release Voltage: 4.18V
Balance Current: 30mA±5mA
Over Discharge Voltage Protection:
Detection Voltage: 2.7V±0.1V
Detection Delay: 1S
Release Voltage: 3.0V±0.1V
Over Discharge Current Protection:
Detection Delay: 1S
Release Condition: Disconnect the load
Short Circuit Protection:
Trigger Condition: Short circuit of external load
Detection Delay: ≥250us
Release Condition: Disconnect the load
Temperature Control Protection:
Temperature During Charging: <-5℃; >50℃
Temperature During Discharge: -20℃~75℃
Self Consumption:
Working Power Consumption: 100uA
Sleep And Over Discharge Power Consumption: 20uA
Placement Temperature:
Temperature Range: -40℃~80℃

Features

1、Multiple Protection Functions: Built in smart chip, with multiple protection functions such as overcurrent, overvoltage, high temperature, short circuit, etc., giving you peace of mind
2、More Intelligent: Integrated BMS solution is developed from the single cell cascade solution, has the advantage of a single chip to control multiple strings of lithium batteries. One core has multiple functions and is more intelligent
3、High Efficiency MOS Tube: Special high efficiency MOS tube, the lower internal resistance, the less loss, and the stronger the power
4、Safe And Reliable: The same port balance is passively balanced, safe and reliable. Aluminum alloy heat sink can quickly dissipate heat to ensure the safety of components
5、Achieve Balancing: Use resistance heat to release the excess power of high capacity batteries so as to achieve the purpose of balancing and extend battery life
6、Applied To Power Tools: Protection board can be applied to power tools, electric scooters, motorcycles, electric motorcycles, electric tricycles, electric vehicles and other supporting lithium batteries

Package List

1 x Battery Protection Board

1 x Flat Cable
