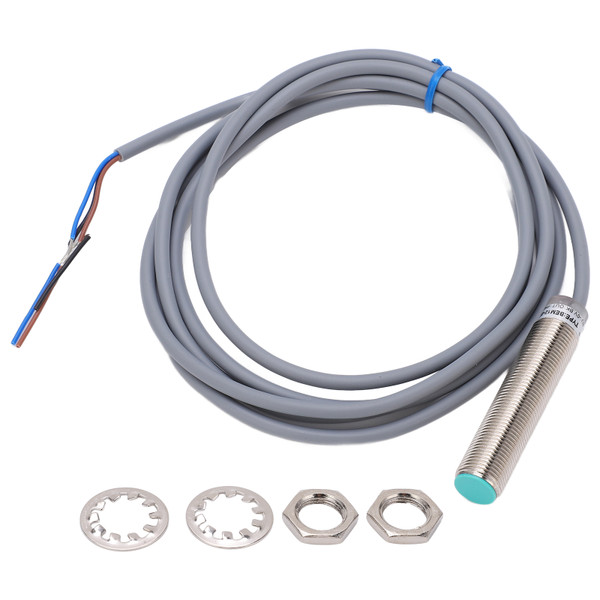

BEM12‑02‑PK Proximity Switch 2mm Detecting Distance Metal Inductive Proximity Switch PNP NO 10‑30VDC

Item Type: Proximity Switch
Material: Brass + Resin
Model: BEM12-02-PK
Purpose: To detect objects in various environments, to control the on and off of the switch
Rated Working Voltage: 10-30VDC
Output Mode: PNP NO (normally open)
Detecting Distance: Approx. 2mm / 0.08in
Installation Method: Non embedded
Thread Diameter: Approx. 12mm / 0.5in
Detection Object: Metal, paper, plastic, water, oil, alcohol, flour, etc.
Operating Temperature: -25℃-70℃ / -13°F-158°F
Storage Temperature: -45℃-80℃ / -49°F-176°F
Humidity: <90%

Features

1、[Stable Performance] The proximity switch is of high quality, high repeat accuracy, fast frequency response, strong anti interference ability and long service life.
2、[Resin Switch Cavity] The inner cavity of the switch is filled with resin and it is fully enclosed, which has the characteristics of vibration resistance, corrosion resistance, water resistance and oil resistance.
3、[Detection Object] Inductive proximity switch can not only detect metal, but also paper, plastic, water, oil, alcohol, flour, etc.
4、[Purpose] The inductive proximity switch is for detecting objects in various environments, for controlling the on and off of the switch.
5、[2mm Detecting Distance and PNP NO] This is a normally close proximity switch sensor with 2mm detection distance.

Package List

1 x Proximity Switch

2 x Gasket

2 x Nut
