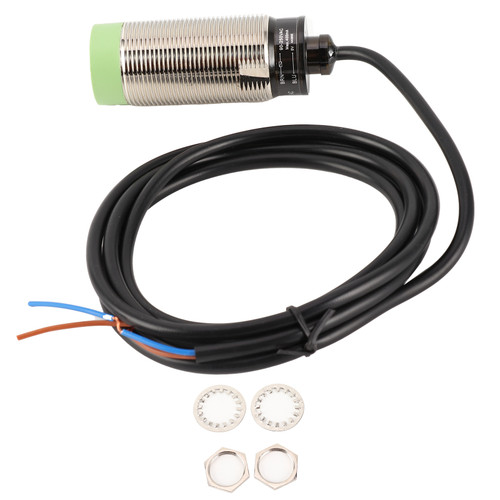

BERM Proximity Switch Cylindrical Normally Open Sensor with 1.2Meter Cable 10‑30VDC15DN

Item Type: BERM Proximity Switch
Model
CR30-15DN
CR30-15DP
Output method
 NPN NO
 PNP NO
Power Supply Voltage: 2 wires 10-30VDC
Working Current: 400mA
Diameter of Induction Cylinder Section: Approx. 30mm / 1.2in
Detection Distance: Approx. 15mm / 0.6in ±10%
Power Cord Length: Approx. 1.2meter / 3.9ft
Detection Objects: Metal, wood, paper, etc.
Working Environment Temperature: -25℃—+75℃
Storage Temperature: -45℃~+80℃
Humidity: <90%
Cable Wrap Material: ABS
Sensor Head Material: Brass
How to Use: The brown connects to the positive pole, the blue connects to the negative pole, and the black wire connects to the output signal.

Features

1、Selected chips and components, stable quality, high stability and strong anti-interference.
2、Heat‑resistant ABS flame‑retardant material shell, 1.2m thick high‑quality cable, good electrical conductivity.
3、The voltage range is wide, the repeat accuracy is high, the frequency response is fast, and the service life is long.
4、The induction probe is sensitive, convenient to use and with good performance.
5、Can be used with peace of mind, with strict quality control and quality assurance.

Package List

1 x Sensor

2 x Fastening Nut

2 x Washer
