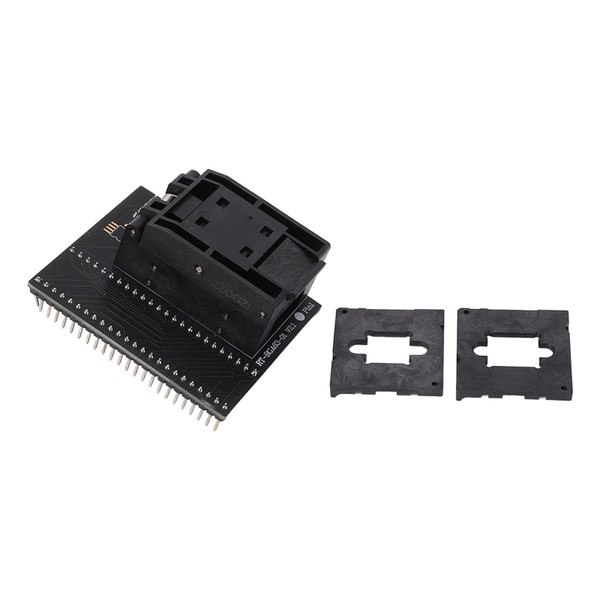

BGA63 Bounding Adapter Serial ICSP Interface Converter Socket Module for Programmer Repair

Item Type: BGA63 Adapter
Compatible Model: For RT809H programmer
Product Life: ≥30000 times
Product Material: PEI, PES
Product Operating Temperature: -55~+170℃
Limit Frame Specification:
11 x 9mm / 0.43 x 0.35in (installed)
11 x 10mm / 0.43 x 0.39in
13 x 10.5mm / 0.51 x 0.41in

Features

1、FOR PROGRAMMER: This adapter is suitable for RT809H programmer offline socket ordinary maintenance, used for EMMC link programming in different scenarios.
2、ICSP INTERFACE: The bounding adapter has unique serial ICSP interface that supports serial download and high speed parallel high voltage programming.
3、APPLICABLE IC SIZE: With 3 limit frames of different specifications, suitable for 11x9mm, 11x10mm, 13x10.5mm IC size, with 0.8‑1.5mm thickness and 0.5mm pin pitch.
4、EASY CONNECTION: Connect the socket to the SD USB interface port on the PC or laptop via the USB SD card reader, and use the recovery software to restore the data.
5、COMPACT SIZE: The programmer bounding adapter has compact size, comfortable and easy to use control program, suitable for MS Windows of all versions.

Package List

1 x Bounding Adapter

3 x Limit Frames (1 installed on the adapter)
