Product Overview

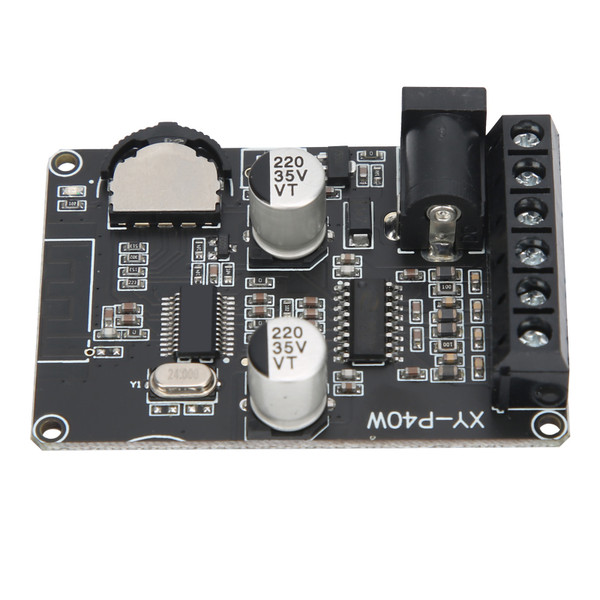

Item Type: Power Amplifier Board
Material: PCB
Application: Suitable for operation by college students, engineers, technicians, etc.
Working Voltage: DC 5-24V
Bluetooth Version: 5.0
Transmission Distance: 15 meters / 49.2ft (visible without obstruction)
Number of Channels: Dual Channel (Stereo)
Output Power (1KHz):
20W x 2 12V 4Ω
30W x 2 16V 4Ω
30W x 2 21V 8Ω
40W x 2 24V 8Ω
Adapted Speakers (40W-200W):
4Ω (5-16V power supply)
8Ω (5-24V power supply)
Module Protection Mechanism: Power supply reverse connection protection, short circuit protection, self-recovery overheating protection.
Material: PCB
Application: Suitable for operation by college students, engineers, technicians, etc.
Working Voltage: DC 5-24V
Bluetooth Version: 5.0
Transmission Distance: 15 meters / 49.2ft (visible without obstruction)
Number of Channels: Dual Channel (Stereo)
Output Power (1KHz):
20W x 2 12V 4Ω
30W x 2 16V 4Ω
30W x 2 21V 8Ω
40W x 2 24V 8Ω
Adapted Speakers (40W-200W):
4Ω (5-16V power supply)
8Ω (5-24V power supply)
Module Protection Mechanism: Power supply reverse connection protection, short circuit protection, self-recovery overheating protection.
Features
1、Adjustable volume: turn to the right to increase the volume, turn to the left to decrease the sound weight.
2、The power amplifier board has anti-reverse protection, short-circuit protection and over-temperature protection.
3、With Bluetooth function, the effective transmission distance is 10-15 meters (without obstacles).
4、The power amplifier module is small in size, stable in performance, and suitable for a variety of installation conditions.
5、The speaker power amplifier module can be used in home or car music systems to improve audio performance.
Package List
1 x Power Amplifier Board
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.78 Inch |
| Length | 3.9 Inch |
