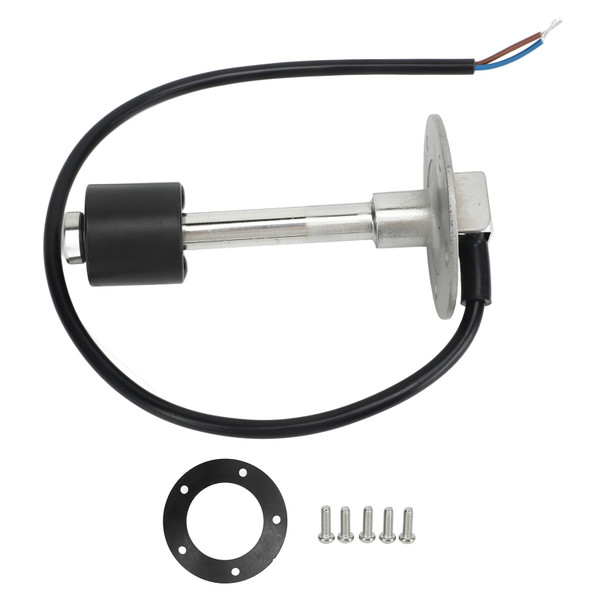

Boat Fuel Sending Unit 0‑190 Ohms 5in Fuel Tank Level Sensor for Ship Yacht Vehicle Standard

Item Type: Boat Fuel Sending Unit
Body Material: 316 Stainless Steel
Cable Material: PVC
Float: NBR
Installation Method: Standard SAE 5 hole type.
Screw Size: M5 x 0.8
Aperture: Approx. 5mm/0.20in
Product Specification: Approx. 125mm / 5in
Recommended Water Tank Size: Approx. 135 ~ 150mm / 5.31 ~ 5.91in
Resolution Range: Approx. 10mm / 0.39in
Fuel and Water Level Sensor Type: Resistance
Rated Current of Alarm Switch: 500mA
Protection Grade: IP67
Operating Temperature: -40℉ ~ +185℉, that is -40℃ ~ +85℃.
Application: For ships, yachts, trucks, RV.

Features

1、For Fuel Sending: This fuel sending unit can better monitor the fuel level and ensure stable fuel flowing, thus facilitating stable power.
2、Practical Using: Widely applied to ships, cars, trucks, etc., ideal for oil level gauge, water level gauge and any liquid without impurities.
3、Higher Accuracy: The output signal is standard 0‑190 ohms, and the resolution accuracy is 10mm, and the sending unit has alarm switch.
4、Stainless Steel: Consisting of 316 stainless steel main body, PVC cable and NBR float, the 5in fuel sending unit is very durable for using.
5、Easy to Install: Comes with a compact size and a light weight, the convenient installation can be quickly completed within 15 minutes.

Package List

1 x Fuel Level Sensor

5 x Screw

1 x Washer
