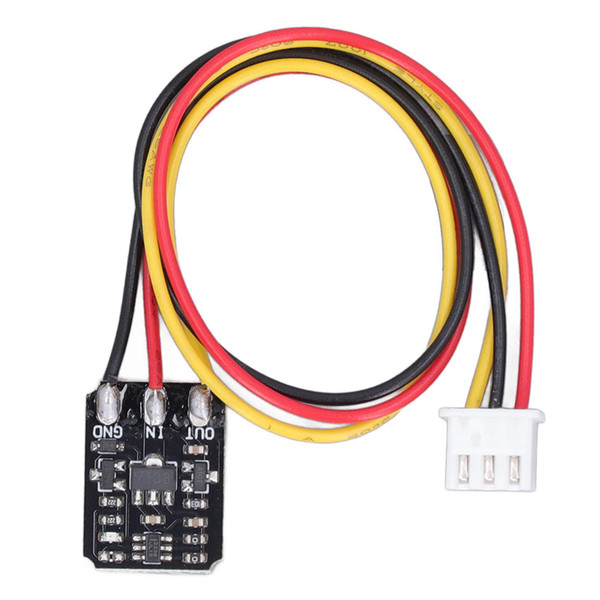

Capacitive Touch Switch Module Intelligent Control Sensor Bistable State Sensitive Response for Night Light DC 3V‑18V

Item Type: Capacitive Touch Switch Module
Material: PCB
Input Voltage: DC 3-18V
Standby Current: 5uA
Input Current: 2.5A (maximum)
Back Touch Sensing Maximum Sensing Distance: Approx. 6mm / 0.24in
Preset Three Pads: IN = power input +, GND = negative, OUT = power output
Standby State: The output voltage is zero, the LED light is off
Power On: Output voltage = input voltage, the LED light is on

Features

1、WIDE APPLICATION: Capacitive touch switch module can be used for LED light control, external relay, power switch, support external MCU
2、APPLICABLE MATERIAL: Capacitive touch sensor module can be used for acrylic glass, ceramic, plastic and other media surface, touch thickness is not more than 6mm
3、FUNCTION DESCRIPTION: Capacitive touch control module preset three pads, IN is power input +, GND is negative, OUT is power output
4、BISTABLE STATE TOUCH CONTROL: Touch sensor module can switch between standby mode and power on mode with a simple touch
5、SMART TOUCH SENSING: Intelligent touch sensor module possess high sensitivity and accuracy in detecting touch, ensuring reliable operation

Package List

1 x Capacitive Touch Switch Module
