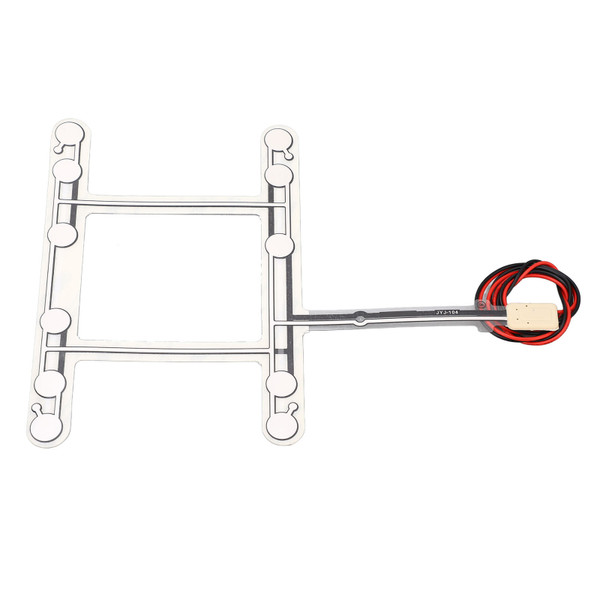

Car Safety Belt Pressure Sensor Rapid Response High Sensitivity Safety Belt Warning Thin Film Pressure Sensor 50V

Item Type: Car Safety Belt Pressure Sensor
Material: ABS
Maximum Driving Voltage: ≤50V
Working Current: ≤100mA
Base Material Withstand Pressure: 2kDVC
Resilience Time: 6ms
Contact Resistance: 0.5-10Ω
Insulation Resistance: ≥100MΩ
Key Operating Force: 15-750g
Normal Working Temperature: -40℃ to +85℃
Function Description:
1. Membrane switch
2. When no one is sitting in the seat, the sensor is disconnected, the resistance is >10MΩ
3. When the seat is occupied, the sensor is connected, the resistance is ≤150Ω

Features

1、[PROVIDE SAFETY] The safety belt reminder sensor detects the occupancy of passengers on the rear seats, providing maximum safety for them.
2、[SAFETY BELT WARNING] The pressure sensor can work with warning light or sound alarm to alert passengers who have not fastened their seatbelts.
3、[RAPID RESPONSE] This car seat pressure has high sensitivity and rapid response time, ensuring reliability.
4、[WIDE APPLICATION] The thin film pressure sensor can be used for car, bus, taxi, passenger car, massage chair, child seat, etc.
5、[RELIABLE MATERIAL] The seat pressure sensor is made of premium materials, with high stability and long service life.

Package List

1 x Car Safety Belt Pressure Sensor
