Product Overview
Commodity Material: ABS
The Distance Between 5.08-301-2P and 5 5.08-301-3P: Approx. 5.08mm/0.2in
5.08-301-2P and 5 5.08-301-3P rated voltage: 300V
5.08-301-2P and 5 5.08-301-3P rated current: 16A
Led Diodes: 60 3mm Light Emitting Diodes, 5 Colors (red, Yellow, White, Blue, Green), 12 for Each Color
Features
1、Provide multi‑size prototype boards for you to choose from, 30 double‑sided prototype boards of 4 different sizes to meet your needs when designing your own electronic DIY projects
2、Contains 10 40‑pin male connectors, 10 40‑pin pitch right‑angle male connectors, their spacing is 2.54mm/0.1in, with single‑row direct headers

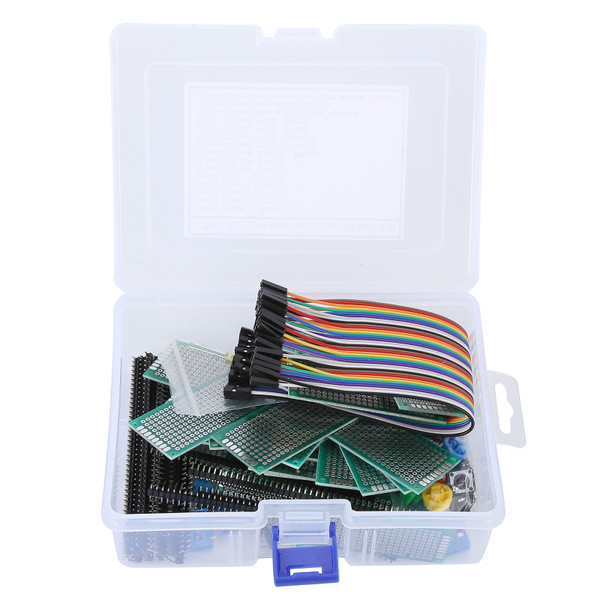

3、All 175 electronic components are collected in a plastic storage box, easy to store, convenient for your electronic experiments and DIY projects
4、There are 4 mounting holes on the corners of the board, it is very convenient to install, you can rest assured to use this electronic components
5、Made of ABS, there are 60 3mm light‑emitting diodes, with 5 colors of red, yellow, white, blue, and green, 12 for each color
Package List
10 x 2x8cm Prototype General Version
10 x 3x7cm Prototype General Version
5 x 4x6cm Prototype General Version
5 x 5x7cm Prototype General Version
10 x 40-pin Male Connector
10 x 40-pin Pitch Right Angle Male Header
12 x 3mm White LED
12 x 3mm Red LED
12 x 3mm Yellow LED
12 x 3mm Green LED
12 x 3mm Blue LED
40 x Female-to-female Cable
5 x 5.08-301-2P
5 x 5.08-301-3P
15 x Tactile Lid Switch
Package Weight and Dimension
| Weight | 0.87 lb |
| Width | 4.68 Inch |
| Height | 1.95 Inch |
| Length | 6.24 Inch |
