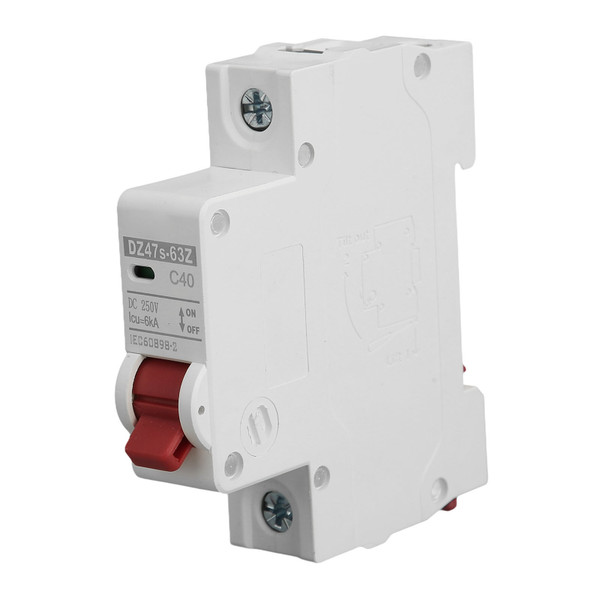

Circuit Breaker 1P DC MCB 40A DIN Rail Mount Protection Switch 6000A Breaking Capacity

Item Type: Circuit Breaker
Model: DZ47s 63Z
Material: Pa66
Rated Current: 40A
Rated Ultimate Short Circuit Breaking Capacity, Household Icn: 6000A
Application: For solar photovoltaic electric motorcycle, electric vehicle.
Mechanical Life: 20,000 Times
Applicable Temperature: -35 ℃ - +70℃

Features

1、Circuit Breaker: Used to protecting the power distribution facilities from overload and short circuit damage, and can also be used for control and isolation.
2、Faster Tripping: The electromagnetic tripping system can immediately trip when the circuit is short circuited to protecting the circuit safety.
3、Arcs Extinguish: The DC circuit breaker has a magnetic system for auxiliary arc extinguishing, also has 6000A breaking capacity.
4、Extensive Using: Widely applied DC power supply system, ship power system, solar photovoltaic system or other DC systems.
5、Easy to Install: Modular structure, adopts screw clamp, 35mm DIN rail installation, which is very convenient and quick.

Package List

1 x Circuit Breaker
