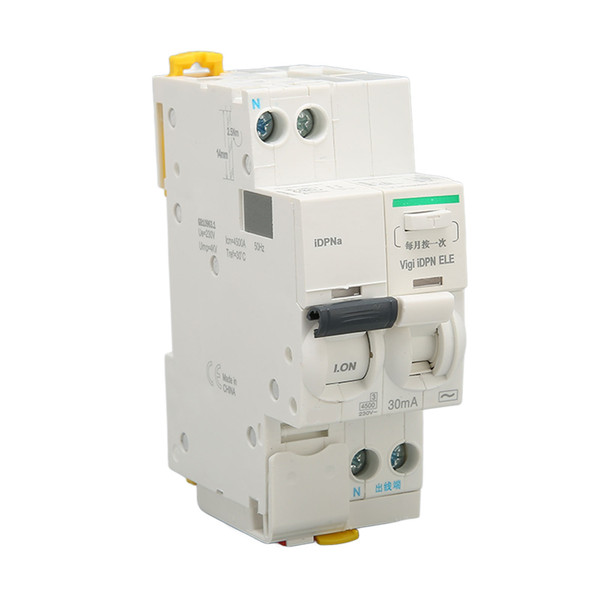

Circuit Breaker Air Switch 1P N AC 230V Leakage Protection Accessory for Home Office

Item Type: Circuit Breaker
Material: PA66
Working Voltage (Ue): 230V
Rated Insulation Voltage (Ui): 400VAC
Withstand Impulse Voltage (Uimp): 4kV
Thermal Trip Reference Setting Temperature: 30℃
Use Category: A
Pollution Level: 3
Magnetic Tripping C Curve: 5~10in
Circuit Breaker Protection Class(IEC60529): IP20
Protection Class Installed in Distribution Box: IP40
Insulation Class: Ⅱ
Over Voltage Category (IEC60364): Ⅱ
Damp Heat Resistance (IEC60068-1): Class 2 (at 55℃, relative humidity 95%).
Wiring Method: Top in and bottom out, bottom in and top out.
Function: Short circuit protection, overload protection, control isolation.
Electrical Life: 10000 Times
Mechanical Life: 20000 Times
Ambient Temperature: -25℃~+60℃
Storage Environment Temperature: -40℃~+85℃

Features

1、Higher Safety: Can provide overload protection, short circuit protection, leakage protection, etc. for higher safety.
2、Reliable Work: The rapid arc extinguishing system can quickly extinguish the arc to effectively avoid electrical fire.
3、Better Design: Complete electrical accessory for remote indication of circuit breaker open, close, fault trip and more.
4、Broad Utility: Widely applied in power distribution protection in civil, commercial buildings and industrial places.
5、Easy to Install: Double locking clip structure, can be operated horizontally during installation, quick to install.

Package List

1 x Circuit Breaker
