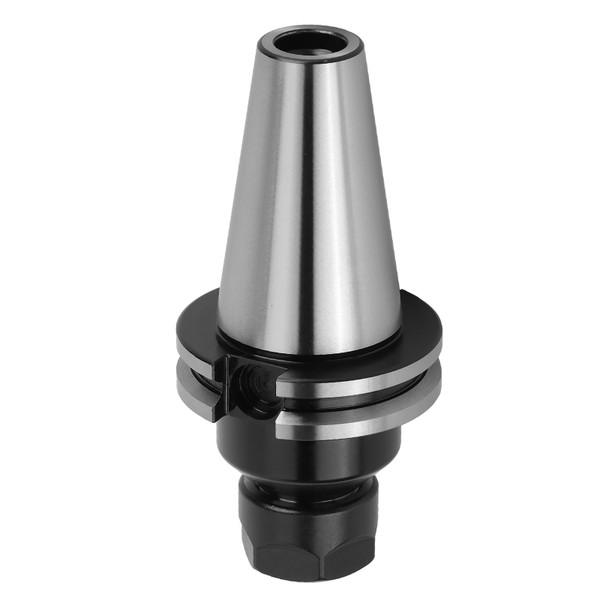

CNC Tool Holder 40Cr Material End Mill Collet Chuck for Milling Machine CAT40‑ER20‑2.76in

Item Type: CNC Tool Holder
Tool Holder Model: CAT40-ER20-2.76in (CAT40 refers to the tool holder model, ER20 refers to the collet model, 2.76 refers to the effective length of the tool holder is 2.76in)
Tool Holder Material: 40Cr
Maximum Speed: 8000r/min
Tool Holder Accuracy: 0.008mm
Application Scope: CNC machining center
Whether Coating: Coating
Matching Collet: ER20 (not included)
Collet Clamping Range: Approx. 1-13mm / 0-0.5in
Matching Pull Stud Model: 5/8-11UNC (American thread) (not included)
Tool Holder Color: Silver + black

Features

1、The clamping range of the CNC tool holder is 1-13mm, and the effective extension length is 2.76in.
2、The clamping accuracy of the tool holder is high, which can ensure the concentricity and balance during processing.
3、The operation is stable and the chip volume is even, and the maximum speed is 8000r/min.
4、Made of 40Cr material, it has toughness and wear resistance, and it is not easy to deform after long-term use.
5、Easy installation and disassembly, stable processing, often used in CNC machining centers.

Package List

1 x CNC Tool Holder
