Product Overview

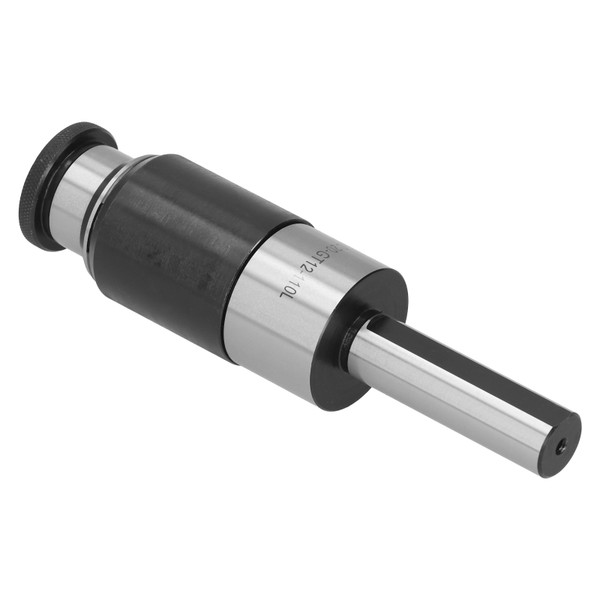

Item Type: Collet Chuck Holder
Model: D20-GT12-110L
Material: High carbon steel
Purpose: Anti-overload protection to prevent the tap from breaking
Taper: 7/24
Hardness: 48°
Accuracy: 0.01mm
Tapping Range: M3-M16
Tool Handle Length: Approx. 110mm / 4.3in
Size of Chuck: Approx. 19mm / 0.7in
Maximum Diameter of Tool Holder Taper: Approx. 20mm / 0.8in
Extendable and Retractable Stroke: Approx. ±15mm / 0.6in
Adapter Chuck: GT12,GT12B,TC312,G3
Model: D20-GT12-110L
Material: High carbon steel
Purpose: Anti-overload protection to prevent the tap from breaking
Taper: 7/24
Hardness: 48°
Accuracy: 0.01mm
Tapping Range: M3-M16
Tool Handle Length: Approx. 110mm / 4.3in
Size of Chuck: Approx. 19mm / 0.7in
Maximum Diameter of Tool Holder Taper: Approx. 20mm / 0.8in
Extendable and Retractable Stroke: Approx. ±15mm / 0.6in
Adapter Chuck: GT12,GT12B,TC312,G3
Features
1、Built‑in spring can help to reduce wear, extend life, bring higher concentricity
2、The product is a quick‑change tap adaptor, possess large compensation function
3、Come with good toughness, strong abrasion resistance, large clamping force, anti‑broken wire and anti‑chaotic teeth
4、Two‑way floating of extendable and retractable, effectively improving work efficiency
5、The product have anti‑overload protection function to prevent the tap from breaking
Package List
1 x Collet Chuck Holder
Package Weight and Dimension
| Weight | 2.57 lb |
| Width | 1.95 Inch |
| Height | 1.95 Inch |
| Length | 7.41 Inch |
