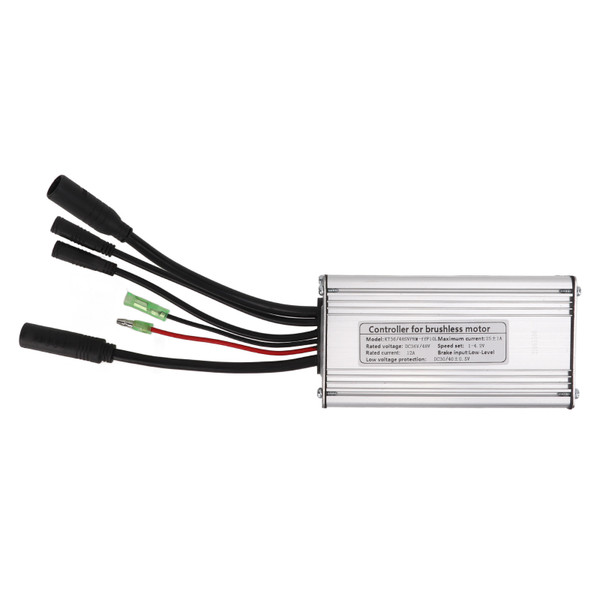

Product Overview
Color: As Picture Shown
Material: Aluminum Alloy
Weight: Approx. 420g / 14.8oz
Controller Box Size: Approx. 125x66x39mm / 4.9x2.6x1.5in
Controller Type: Sine Wave Controller
Connector Type: Waterproof Connector
Maximum Current: 25±1A
Speed Setting: 1-4.2V
Rated Current: 12A
Brake Input: Low Level
Applicable Motor: Usually 750W Motor
Controller Wire Color Definition:
1. Black Long Wire: Motor Wire
2. Red and Black Single Big Wire: Power Cord
3. Black Long Wire (Fine Hole): One for Four/One for Five (9 Cores)
4. Black Line and Red Head: Light Line
5. Black Wire and Yellow Head: Power Assist Sensor Wire
Features
1、Heat Dissipation Function: The controller shell is made of high quality aluminum alloy with groove design. Due to its good heat dissipation function, it can protect the internal circuit and avoid thermal overload.
2、Provide Stable Speed: The brushless motor sine wave controller can provide stable speed and sensitive braking and direction change control, providing you a good using experience.
3、Waterproof Connectors: Fully waterproof connectors ensure maximum durability in any weather conditions. High performance wires and waterproof interfaces are durable, ensuring low failure rates for long term use.
4、Easy Installations: The electric bicycle sine wave controller is easy to install and use, equipped with wiring identification instructions, and is usually suitable for 750W brushless motors.
5、Applicable Model: Sine wave controller needs to be used in conjunction with products that are consistent with the communication protocol and is only compatible for KT series instrument products.
Package List
1 x Controller
1 x Manual
Package Weight and Dimension
| Weight | 0.98 lb |
| Width | 4.29 Inch |
| Height | 3.51 Inch |
| Length | 5.85 Inch |
