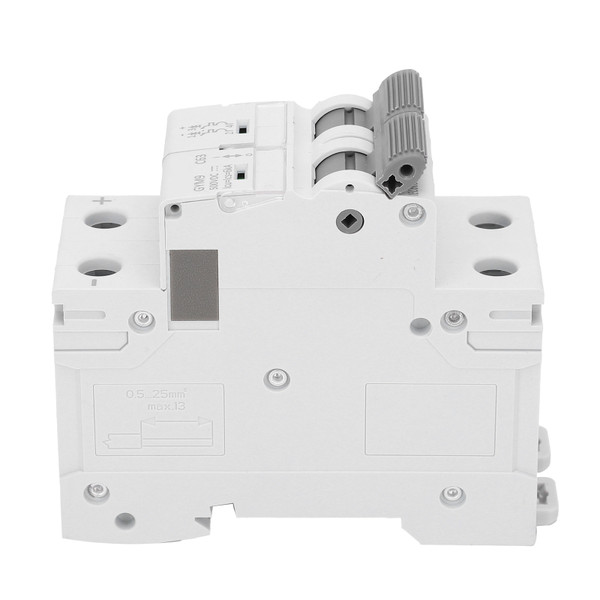

DC Circuit Breaker 2P Mini Portable Electronic Protection Equipment GYM9‑C63 1-63A

Item Type: DC Circuit Breaker
Rated Current: 1-63A
Number of Poles: 2P
Rated Breaking Capacity: 6000A
Pollution Degree: 2
Trip Curve: B: 6In ± 20%: C: 12In ± 20%
Mechanical Life: 10000
Mechanical Characteristics:
Contact Indication: Yes
Protection Level: IP20
Adjusting Temperature: 30℃
Ambient Temperature (average Daily Temperature s35℃): -5~+40℃
Storage Temperature: -25-+70℃
Connection Method: Wire and cable / U‑shaped female cable / pin‑shaped female cable .
Wire Connection Specification (up/down): 25mm²18-3
Torsion: 3.0N m, 22
Installation: DIN60715 (35mm) standard rail
Wiring: Refer to the wiring diagram

Features

1、The product has the function of contact position indication, with a transparent sheet design, which is convenient for customers to quickly identify.
2、With a double return row design, which is convenient for customers to connect quickly.
3、Has a fast closing function to ensure reliable operation of impact loads and prolong the service life of the circuit breaker.
4、There are 3 wiring methods: wire and cable / U‑shaped female cable / pin‑shaped female cable .
5、Small size, easy to carry and store, convenient to use and with good performance.

Package List

1 x Circuit Breaker
