Product Overview
Features:
Specification:
Output Voltage: Default 5VDC, automatically adjust between 3V-12V after trigger fast charging
Output Power: Max. 24W (5V@3.4A, 9V@2.5A, 12V@2A)
Conversion Efficiency: 90%~97%
Reverse Input Protection: No
Input Under-voltage Protection: Yes
Input Over Current Protection: Yes
Output Over Current & Short Circuit Protection: Yes
Over Temperature Protection: Yes
Package list:
1 * Module
Specification:
Output Voltage: Default 5VDC, automatically adjust between 3V-12V after trigger fast charging
Output Power: Max. 24W (5V@3.4A, 9V@2.5A, 12V@2A)
Conversion Efficiency: 90%~97%
Reverse Input Protection: No
Input Under-voltage Protection: Yes
Input Over Current Protection: Yes
Output Over Current & Short Circuit Protection: Yes
Over Temperature Protection: Yes
Package list:
1 * Module
Features

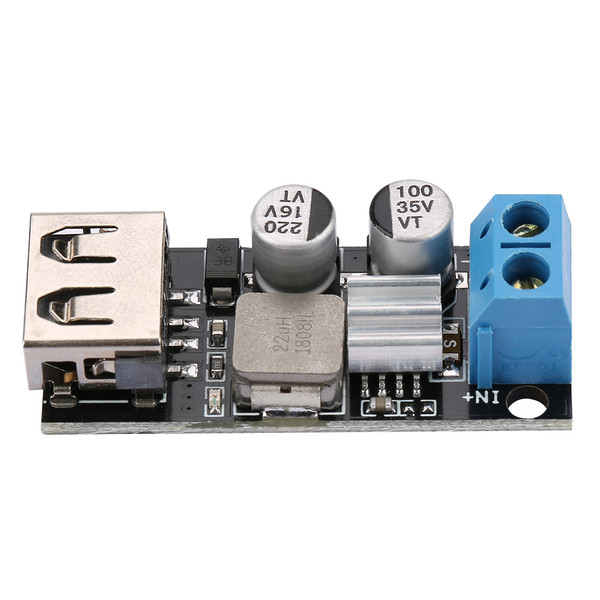

1、This is a DC power converter module with long service life.
2、High power and stable output, it converts 6-32VDC to 5VDC.
3、High quality components ensures high conversion efficiency, up to 97%.
4、Designed with terminal block for easy and convenient wiring.
5、It has USB output port that can be used to charge phone, supports fast charging.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 0.78 Inch |
| Height | 0.78 Inch |
| Length | 1.95 Inch |
