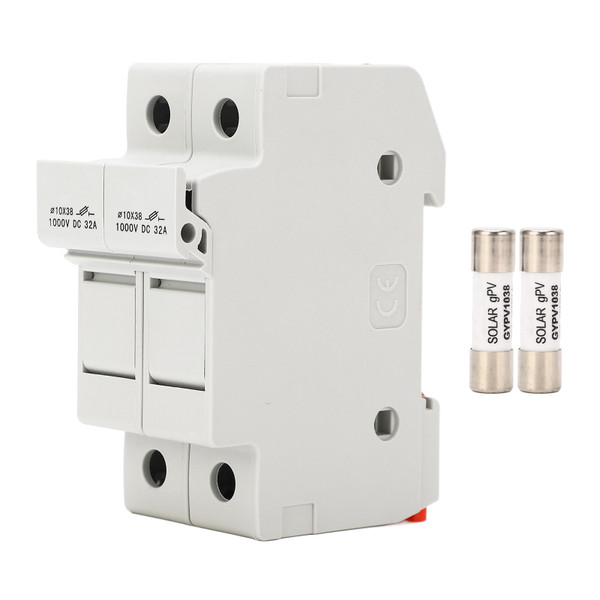

Product Overview
Material: PC
Fuse Parameter:
Rated Current: 30A
Fuse Size: Approx. 10x38mm/0.4x1.5in
Operation Level: gPV
Standard: GB/T 13539.6 IEC60269-6
Breaking Capacity: 20kA
Time Constant: 1-3ms
Fuse Holder Parameters:
Rated Current: 32A
Adapting Fuse Core: 10x38
Operation Level: gPV
Standard: GB/T 13539.6 IEC 60269-6
Features
1、Main Function: The fuse holder is used for short circuit and open circuit protection, surge current and short circuit fault voltage quick breaking protection.
2、Widely Use: The fuse holder can be used for charging converter system, photovoltaic power station, inverter rectifier system, photovoltaic power generation system.
3、Plastic Shell: The fuse base is made of plastic shell with contacts, contains fuse links, rivet is used as the connection method.
4、Melting Tube: The melting tube is made of high strength porcelain, filled with high purity quartz sand and used as the arc medium after chemical treatment.
5、Easy Installation: DC fuse holder is compact and convenient, safe to use, beautiful in appearance, adopts DIN rail mounting method, simple to install and removal.
Package List
1 x PV DC Fuse Holder
2 x PV Fuse
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.56 Inch |
| Length | 3.9 Inch |
