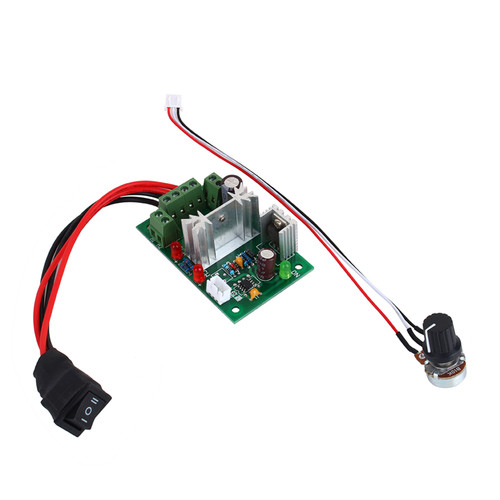

Product Overview
Item Type: DC Motor Speed ControllerTechnical Parameter:
Model: CCM96SK
Potentiometer: Resistance Value B100K; Opening: Approx. 8mm / 0.3in
Control Power: 12V x 10A=120W, 24V x 10A=240W
Rated Current: 10A
Maximum Current: 20A
Speed Adjustment Range: 5%-100%
PWM Frequency: 25kHz
Model: CCM96SK
Potentiometer: Resistance Value B100K; Opening: Approx. 8mm / 0.3in
Control Power: 12V x 10A=120W, 24V x 10A=240W
Rated Current: 10A
Maximum Current: 20A
Speed Adjustment Range: 5%-100%
PWM Frequency: 25kHz
Features
1、The potentiometer knob can change the duty cycle of the governor output to change the motor speed.
2、Widely used in industries such as CNC machine tools, papermaking and printing, textile printing and dyeing, and optical cable and cable equipment.
3、A modular DC motor speed controller that integrates power supply, control and drive circuits
4、The three‑dimensional structure is adopted, the control circuit adopts micro‑power components, and the photocoupler is used to realize the isolation and conversion of current and voltage.
5、The speed governor is small in size and light in weight, and can be used alone or directly installed on a DC motor to form an integrated DC speed regulating motor
Package List
1 x Speed Controller
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
